Upgrade to 3.3 and 7.3

1. Upgrade From 7.2.2.2 to 7.3

RDAF Platform: From 3.2.2.2 to 3.3

OIA (AIOps) Application: From 7.2.2.2 to 7.3

RDAF Deployment rdaf & rdafk8s CLI: From 1.1.9.2 to 1.1.10

RDAF Client rdac CLI: From 3.2.2.2 to 3.3

1.1. Prerequisites

Before proceeding with this upgrade, please make sure and verify the below prerequisites are met.

  • RDAF Deployment CLI version: 1.1.9.2

  • Infra Services tag: 1.0.2,1.0.2.1(nats, haproxy)

  • Platform Services and RDA Worker tag: 3.2.2.2/3.2.2.3

  • OIA Application Services tag: 7.2.2.2

  • CloudFabrix recommends taking VMware VM snapshots where RDA Fabric infra/platform/applications are deployed

  • RDAF Deployment CLI version: 1.1.9.2

  • Infra Services tag: 1.0.2,1.0.2.1(nats, haproxy)

  • Platform Services and RDA Worker tag: 3.2.2.2/3.2.2.3

  • OIA Application Services tag: 7.2.2.2

  • CloudFabrix recommends taking VMware VM snapshots where RDA Fabric infra/platform/applications are deployed

For FSM Pre-Upgrade & Post-Upgrade steps Click Here

Useful Information

Warning

Make sure all of the above pre-requisites are met before proceeding with the upgrade process.

Warning

Kubernetes: Though Kubernetes based RDA Fabric deployment supports zero downtime upgrade, it is recommended to schedule a maintenance window for upgrading RDAF Platform and AIOps services to newer version.

Important

Please make sure full backup of the RDAF platform system is completed before performing the upgrade.

Kubernetes: Please run the below backup command to take the backup of application data.

rdafk8s backup --dest-dir <backup-dir>

Run the below command on RDAF Management system and make sure the Kubernetes PODs are NOT in restarting mode (it is applicable to only Kubernetes environment)

kubectl get pods -n rda-fabric -l app_category=rdaf-infra

kubectl get pods -n rda-fabric -l app_category=rdaf-platform

kubectl get pods -n rda-fabric -l app_component=rda-worker

kubectl get pods -n rda-fabric -l app_name=oia

Warning

Make sure all of the above pre-requisites are met before proceeding with the upgrade process.

Warning

Non-Kubernetes: Upgrading RDAF Platform and AIOps application services is a disruptive operation. Schedule a maintenance window before upgrading RDAF Platform and AIOps services to newer version.

Important

Please make sure full backup of the RDAF platform system is completed before performing the upgrade.

Non-Kubernetes: Please run the below backup command to take the backup of application data.

rdaf backup --dest-dir <backup-dir>
Note: Please make sure this backup-dir is mounted across all infra,cli vms.

  • Verify that RDAF deployment rdaf cli version is 1.1.9.2 or rdafk8s cli version is 1.1.9.2 on the VM where CLI was installed for docker on-prem registry and managing Kubernetes or Non-kubernetes deployments.
rdaf --version
rdafk8s --version
  • On-premise docker registry service version is 1.0.2
docker ps | grep docker-registry
  • RDAF Infrastructure services version is 1.0.2 (rda-nats service version is 1.0.2.1 and rda-minio service version is RELEASE.2022-11-11T03-44-20Z)

Run the below command to get RDAF Infra services details

rdafk8s infra status
  • RDAF Platform services version is 3.2.2.2 / 3.2.2.3

Run the below command to get RDAF Platform services details

rdafk8s platform status
  • RDAF OIA Application services version is 7.2.2.2

Run the below command to get RDAF App services details

rdafk8s app status

Run the below command to get RDAF Infra services details

rdaf infra status
  • RDAF Platform services version is 3.2.2.2 / 3.2.2.3

Run the below command to get RDAF Platform services details

rdaf platform status
  • RDAF OIA Application services version is 7.2.2.2

Run the below command to get RDAF App services details

rdaf app status

RDAF Deployment CLI Upgrade:

Please follow the below given steps.

Note

Upgrade RDAF Deployment CLI on both on-premise docker registry VM and RDAF Platform's management VM if provisioned separately.

Login into the VM where rdaf & rdafk8s deployment CLI was installed for docker on-prem registry and managing Kubernetes or Non-kubernetes deployment.

  • Download the RDAF Deployment CLI's newer version 1.1.10 bundle.
wget  https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/rdafcli-1.1.10.tar.gz
  • Upgrade the rdaf & rdafk8s CLI to version 1.1.10
pip install --user rdafcli-1.1.10.tar.gz
  • Verify the installed rdaf & rdafk8s CLI version is upgraded to 1.1.10
rdaf --version
rdafk8s --version
  • Download the RDAF Deployment CLI's newer version 1.1.10 bundle and copy it to RDAF management VM on which rdaf & rdafk8s deployment CLI was installed.
wget  https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/offline-rhel-1.1.10.tar.gz
  • Extract the rdaf CLI software bundle contents
tar -xvzf offline-rhel-1.1.10.tar.gz
  • Change the directory to the extracted directory
cd offline-rhel-1.1.10
  • Upgrade the rdafCLI to version 1.1.10
pip install --user rdafcli-1.1.10.tar.gz  -f ./ --no-index
  • Verify the installed rdaf CLI version
rdaf --version
rdafk8s --version

wget  https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/offline-ubuntu-1.1.10.tar.gz
  • Extract the rdaf CLI software bundle contents
tar -xvzf offline-rhel-1.1.10.tar.gz
  • Change the directory to the extracted directory
cd offline-rhel-1.1.10
  • Upgrade the rdafCLI to version 1.1.10
pip install --user rdafcli-1.1.10.tar.gz  -f ./ --no-index
  • Verify the installed rdaf CLI version
rdaf --version
rdafk8s --version
  • Download the RDAF Deployment CLI's newer version 1.1.10 bundle
wget  https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/rdafcli-1.1.10.tar.gz
  • Upgrade the rdaf CLI to version 1.1.10
pip install --user rdafcli-1.1.10.tar.gz
  • Verify the installed rdaf CLI version is upgraded to 1.1.10
rdaf --version
  • To stop application services, run the below command. Wait until all of the services are stopped.
rdaf app down OIA

rdaf app status
  • To stop RDAF worker services, run the below command. Wait until all of the services are stopped.
rdaf worker down

rdaf worker status
  • To stop RDAF platform services, run the below command. Wait until all of the services are stopped.
rdaf platform down

rdaf platform status
  • Download the RDAF Deployment CLI's newer version 1.1.10 bundle and copy it to RDAF management VM on which rdaf & rdafk8s deployment CLI was installed.
wget  https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/offline-rhel-1.1.10.tar.gz
  • Extract the rdaf CLI software bundle contents
tar -xvzf offline-rhel-1.1.10.tar.gz
  • Change the directory to the extracted directory
cd offline-rhel-1.1.10
  • Upgrade the rdafCLI to version 1.1.10
pip install --user rdafcli-1.1.10.tar.gz  -f ./ --no-index
  • Verify the installed rdaf CLI version
rdaf --version
rdafk8s --version

wget  https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/offline-ubuntu-1.1.10.tar.gz
  • Extract the rdaf CLI software bundle contents
tar -xvzf offline-ubuntu-1.1.10.tar.gz
  • Change the directory to the extracted directory
cd offline-ubuntu-1.1.10
  • Upgrade the rdafCLI to version 1.1.10
pip install --user rdafcli-1.1.10.tar.gz  -f ./ --no-index
  • Verify the installed rdaf CLI version
rdaf --version
rdafk8s --version

1.2. Download the new Docker Images

Download the new docker image tags for RDAF Platform and OIA Application services and wait until all of the images are downloaded.

rdaf registry fetch --tag 3.3,7.3,7.3.0.1,7.3.2

Note

Neo4j graphdb service is optional, please skip this step if this service is not needed.

rdaf registry fetch --neo4j-tag 5.11.0

Run the below command to verify above mentioned tags are downloaded for all of the RDAF Platform and OIA Application services.

rdaf registry list-tags

Please make sure 3.3 image tag is downloaded for the below RDAF Platform services.

  • rda-client-api-server
  • rda-registry
  • rda-scheduler
  • rda-collector
  • rda-identity
  • rda-fsm
  • rda-access-manager
  • rda-resource-manager
  • rda-user-preferences
  • onprem-portal
  • onprem-portal-nginx
  • rda-worker-all
  • onprem-portal-dbinit
  • cfxdx-nb-nginx-all
  • rda-event-gateway
  • rda-chat-helper
  • rdac
  • rdac-full

Please make sure 7.3 image tag is downloaded for the below RDAF OIA Application services.

  • rda-app-controller
  • rda-alert-processor
  • rda-file-browser
  • rda-smtp-server
  • rda-ingestion-tracker
  • rda-reports-registry
  • rda-ml-config
  • rda-event-consumer
  • rda-webhook-server
  • rda-irm-service
  • rda-alert-ingester
  • rda-collaboration
  • rda-notification-service
  • rda-configuration-service
  • rda-alert-processor-companion

Please make sure 7.3.0.1 image tag is downloaded for the below RDAF OIA Application services.

  • rda-event-consumer

Please make sure 7.3.2 image tag is downloaded for the below RDAF OIA Application services.

  • rda-alert-ingester

Downloaded Docker images are stored under the below path.

/opt/rdaf/data/docker/registry/v2

Run the below command to check the filesystem's disk usage on which docker images are stored.

df -h /opt

Optionally, If required, older image-tags which are no longer used can be deleted to free up the disk space using the below command.

rdaf registry delete-images --tag <tag1,tag2>

1.3.Upgrade Steps

1.3.1 Upgrade RDAF Infra Services

RDA Fabric platform has introduced supporting GraphDB service in 3.3 release. It is an optional service and it can be skipped during the upgrade process.

Download the python script (rdaf_upgrade_1192_1110_without_graphdb.py) if GraphDB service is NOT going to be installed.

wget https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/rdaf_upgrade_1192_1110_without_graphdb.py

Please run the downloaded python upgrade script.

rdaf_upgrade_1192_1110_without_graphdb.py

It generates a new values.yaml.latest with new environment variables for rda_scheduler infrastructure service.

Tip

Please skip the below step if GraphDB service is NOT going to be installed.

Warning

For installing neo4j GraphDB service, please add additional disk to RDA Fabric Infrastructure VM. Clicking Here

It is a pre-requisite and this step need to be completed before installing the neo4j GraphDB service.

Download the python script (rdaf_upgrade_1192_1110.py) if GraphDB service is going to be installed.

wget https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.10/rdaf_upgrade_1192_1110.py

Please run the downloaded python upgrade script.

rdaf_upgrade_1192_1110.py

It generates a new values.yaml.latest with new environment variables for rda_scheduler infrastructure service and /opt/rdaf/config/network_config/config.json file appended with neo4j GraphDB infra service

Once the above python script (with or with-out GraphDB configuration) is executed it will create /opt/rdaf/deployment-scripts/values.yaml.latest file.

Note

Please take a backup of /opt/rdaf/deployment-scripts/values.yaml file.

cp /opt/rdaf/deployment-scripts/values.yaml /opt/rdaf/deployment-scripts/values.yaml.backup

Edit /opt/rdaf/deployment-scripts/values.yaml and apply the below changes for rda_scheduler service.

vi /opt/rdaf/deployment-scripts/values.yaml

Under rda_scheduler service configuration, set the below environment variables

Note

When integrating CFX RDA Fabric portal with GitHub, configure the following environment variables with appropriate values. However, these variables can be left empty if integration with GitHub is NOT required.

RDA_GIT_ACCESS_TOKEN: ''
RDA_GIT_URL: ''
RDA_GITHUB_ORG: ''
RDA_GITHUB_REPO: ''
RDA_GITHUB_BRANCH_PREFIX: ''

Note

For reference, please see the configuration of the rda_scheduler service mentioned below.

rda_scheduler:
    mem_limit: 2G
    memswap_limit: 2G
    privileged: false
    environment:
      RDA_GIT_ACCESS_TOKEN: "ghp_cU3sDYe5yeARJrJaLflJLUBFdybDWY3KaKjV"
      RDA_GIT_URL: "https://api.github.com"
      RDA_GITHUB_ORG: "Organization Name"
      RDA_GITHUB_REPO: "test-playground"
      RDA_GITHUB_BRANCH_PREFIX: "main"
      RDA_ENABLE_TRACES: "no"
      DISABLE_REMOTE_LOGGING_CONTROL: "no"
      RDA_SELF_HEALTH_RESTART_AFTER_FAILURES: 3

Tip

  • Please skip the below step of installing neo4j GraphDB service if it is not needed.
rdafk8s infra install --tag 1.0.2 --service neo4j
  • Please use the below mentioned command and wait till all of the neo4j pods are in Running state.
kubectl get pods -n rda-fabric -l app_category=rdaf-infra

Run the below RDAF command to check infra status

rdafk8s infra status

+----------------+----------------+-------------+--------------+---------+
| Name           | Host           | Status      | Container Id | Tag     |
+----------------+----------------+-------------+--------------+---------+
| haproxy        | 192.168.131.41 | Up 25 hours | 21ce252eec14 | 1.0.2.1 |
| haproxy        | 192.168.131.42 | Up 25 hours | 329a6aa40e40 | 1.0.2.1 |
| keepalived     | 192.168.131.41 | active      | N/A          | N/A     |
| keepalived     | 192.168.131.42 | active      | N/A          | N/A     |
| nats           | 192.168.131.41 | Up 2 months | 7b7a15f7d742 | 1.0.2.1 |
| nats           | 192.168.131.42 | Up 2 months | a92cd1df2cbf | 1.0.2.1 |
| rda-neo4j      | 192.168.109.65 | Up 23 Hours | 7e533c138867 | 5.11.0  |
+----------------+----------------+-----------------+--------------+-----+

Tip

  • Please skip the below step of installing neo4j GraphDB service if it is not needed.
  • Install neo4j service using below command
rdaf infra install --tag 5.11.0 --service neo4j

Run the below RDAF command to check infra status

rdaf infra status

+----------------+----------------+-------------+--------------+---------+
| Name           | Host           | Status      | Container Id | Tag     |
+----------------+----------------+-------------+--------------+---------+
| haproxy        | 192.168.107.63 | Up 25 hours | 21ce252eec14 | 1.0.2.1 |
| haproxy        | 192.168.107.64 | Up 25 hours | 329a6aa40e40 | 1.0.2.1 |
| keepalived     | 192.168.107.63 | active      | N/A          | N/A     |
| keepalived     | 192.168.107.64 | active      | N/A          | N/A     |
| nats           | 192.168.107.63 | Up 2 months | 7b7a15f7d742 | 1.0.2.1 |
| nats           | 192.168.107.64 | Up 2 months | a92cd1df2cbf | 1.0.2.1 |
| neo4j          | 192.168.107.63 | Up 42 hours | ee7e26cecb82 | 5.11.0  |
+----------------+----------------+-------------+--------------+---------+

Run the below RDAF command to check infra healthcheck status

rdaf infra healthcheck

+----------------+-----------------+--------+-----------------+----------------+--------------+
| Name           | Check           | Status | Reason          | Host           | Container Id |
+----------------+-----------------+--------+-----------------+----------------+--------------+
| haproxy        | Port Connection | OK     | N/A             | 192.168.107.63 | 21ce252eec14 |
| haproxy        | Service Status  | OK     | N/A             | 192.168.107.63 | 21ce252eec14 |
| haproxy        | Firewall Port   | OK     | N/A             | 192.168.107.64 | 329a6aa40e40 |
| keepalived     | Service Status  | OK     | N/A             | 192.168.107.63 | N/A          |
| keepalived     | Service Status  | OK     | N/A             | 192.168.107.64 | N/A          |
| nats           | Port Connection | OK     | N/A             | 192.168.107.63 | 7b7a15f7d742 |
| nats           | Service Status  | OK     | N/A             | 192.168.107.63 | 7b7a15f7d742 |
| nats           | Firewall Port   | OK     | N/A             | 192.168.107.64 | a92cd1df2cbf |
| minio          | Port Connection | OK     | N/A             | 192.168.107.62 | cb4b5f67dfc8 |
| minio          | Service Status  | OK     | N/A             | 192.168.107.62 | cb4b5f67dfc8 |
| mariadb        | Port Connection | OK     | N/A             | 192.168.107.63 | 717b2b539a95 |
| mariadb        | Service Status  | OK     | N/A             | 192.168.107.63 | 717b2b539a95 |
| opensearch     | Firewall Port   | OK     | N/A             | 192.168.107.65 | 193de5b9d521 |
| zookeeper      | Service Status  | OK     | N/A             | 192.168.107.63 | 9df371735ec2 |
| kafka          | Port Connection | OK     | N/A             | 192.168.107.65 | 8c5acc5d3073 |
| kafka          | Service Status  | OK     | N/A             | 192.168.107.65 | 8c5acc5d3073 |
| kafka          | Firewall Port   | OK     | N/A             | 192.168.107.65 | 8c5acc5d3073 |
| redis          | Service Status  | OK     | Redis Slave     | 192.168.107.65 | 0db5415aacee |
| redis          | Firewall Port   | OK     | N/A             | 192.168.107.65 | 0db5415aacee |
| redis-sentinel | Port Connection | OK     | N/A             | 192.168.107.63 | 66cc0ff7d29e |
| redis-sentinel | Service Status  | OK     | N/A             | 192.168.107.63 | 66cc0ff7d29e |
| neo4j          | Service Status  | OK     | N/A             | 192.168.107.63 | ee7e26cecb82 |
| neo4j          | Firewall Port   | OK     | N/A             | 192.168.107.63 | ee7e26cecb82 |
| portal         | Service Status  | OK     | N/A             | 192.168.107.62 | d6c9b498227e |
| portal         | Firewall Port   | OK     | N/A             | 192.168.107.62 | d6c9b498227e |
+----------------+-----------------+--------+-----------------+--------------+----------------+

Before initiating the upgrade steps, RDA Fabric's platform, worker and application services need to be stopped.

  • To stop OIA application services, run the below command. Wait until all of the services are stopped.
rdaf app down OIA

rdaf app status
  • To stop RDAF worker services, run the below command. Wait until all of the services are stopped.
rdaf worker down

rdaf worker status
  • To stop RDAF platform services, run the below command. Wait until all of the services are stopped.
rdaf platform down

rdaf platform status

1.3.2 Upgrade RDAF Platform Services

Step-1: Run the below command to initiate upgrading RDAF Platform services.

rdafk8s platform upgrade --tag 3.3

As the upgrade procedure is a non-disruptive upgrade, it puts the currently running PODs into Terminating state and newer version PODs into Pending state.

Step-2: Run the below command to check the status of the existing and newer PODs and make sure atleast one instance of each Platform service is in Terminating state.

kubectl get pods -n rda-fabric -l app_category=rdaf-platform

Step-3: Run the below command to put all Terminating RDAF platform service PODs into maintenance mode. It will list all of the POD Ids of platform services along with rdac maintenance command that required to be put in maintenance mode.

python maint_command.py

Note

If maint_command.py script doesn't exist on RDAF deployment CLI VM, it can be downloaded using the below command.

wget https://macaw-amer.s3.amazonaws.com/releases/rdaf-platform/1.1.6/maint_command.py

Step-4: Copy & Paste the rdac maintenance command as below.

rdac maintenance start --ids <comma-separated-list-of-platform-pod-ids>

Step-5: Run the below command to verify the maintenance mode status of the RDAF platform services.

rdac pods --show_maintenance | grep False

Step-6: Run the below command to delete the Terminating RDAF platform service PODs

for i in `kubectl get pods -n rda-fabric -l app_category=rdaf-platform | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done

Note

Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 for rest of the RDAF Platform service PODs.

Please wait till all of the new platform service PODs are in Running state and run the below command to verify their status and make sure all of them are running with 3.3 version.

rdafk8s platform status

+---------------------+----------------+---------------+----------------+-------+
| Name                | Host           | Status        | Container Id   | Tag   |
+---------------------+----------------+---------------+----------------+-------+
| rda-api-server      | 192.168.131.46 | Up 1 Days ago | faf4cdd79dd4   | 3.3   |
| rda-api-server      | 192.168.131.44 | Up 1 Days ago | 409c81c1000d   | 3.3   |
| rda-registry        | 192.168.131.46 | Up 1 Days ago | fa2682e9f7bb   | 3.3   |
| rda-registry        | 192.168.131.45 | Up 1 Days ago | 91eca9476848   | 3.3   |
| rda-identity        | 192.168.131.46 | Up 1 Days ago | 4e5e337eabe7   | 3.3   |
| rda-identity        | 192.168.131.44 | Up 1 Days ago | b10571cfa217   | 3.3   |
| rda-fsm             | 192.168.131.44 | Up 1 Days ago | 1cea17b4d5e0   | 3.3   |
| rda-fsm             | 192.168.131.46 | Up 1 Days ago | ac34fce6b2aa   | 3.3   |
| rda-chat-helper     | 192.168.131.45 | Up 1 Days ago | ea083e20a082   | 3.3   |
+---------------------+---------------+---------------+----------------+--------+

Run the below command to check rda-fsm service is up and running and also verify that one of the rda-scheduler service is elected as a leader under Site column.

rdac pods

+-------+----------------------------------------+-------------+--------------+----------+-------------+-----------------+--------+--------------+---------------+--------------+
| Cat   | Pod-Type                               | Pod-Ready   | Host         | ID       | Site        | Age             |   CPUs |   Memory(GB) | Active Jobs   | Total Jobs   |
|-------+----------------------------------------+-------------+--------------+----------+-------------+-----------------+--------+--------------+---------------+--------------|
| Infra | api-server                             | True        | rda-api-server | b52f3919 |             | 1 day, 3:43:49  |      8 |        31.33 |               |              |
| Infra | api-server                             | True        | rda-api-server | 4fe976c4 |             | 1 day, 3:42:42  |      8 |        31.33 |               |              |
| Infra | collector                              | True        | rda-collector- | 50ba4175 |             | 1 day, 23:01:14 |      8 |        31.33 |               |              |
| Infra | collector                              | True        | rda-collector- | e8d040a0 |             | 1 day, 23:01:33 |      8 |        31.33 |               |              |
| Infra | registry                               | True        | rda-registry-5 | 4b220140 |             | 1 day, 23:00:29 |      8 |        31.33 |               |              |
| Infra | registry                               | True        | rda-registry-5 | 711afddf |             | 1 day, 23:01:37 |      8 |        31.33 |               |              |
| Infra | scheduler                              | True        | rda-scheduler- | 21bbd0a9 | *leader*    | 1 day, 23:01:15 |      8 |        31.33 |               |              |
| Infra | scheduler                              | True        | rda-scheduler- | ff2700dd |             | 1 day, 22:59:38 |      8 |        31.33 |               |              |
| Infra | worker                                 | True        | rda-worker-59b | 94f56928 | rda-site-01 | 1 day, 22:36:25 |      8 |        31.33 | 3             | 95           |
| Infra | worker                                 | True        | rda-worker-59b | 786e86c2 | rda-site-01 | 1 day, 21:00:51 |      8 |        31.33 | 0             | 108          |
+-------+----------------------------------------+-------------+----------------+----------+-------------+-----------------+--------+--------------+---------------+--------------+

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

Warning

For Non-Kubernetes deployment, upgrading RDAF Platform and AIOps application services is a disruptive operation. Please schedule a maintenance window before upgrading RDAF Platform and AIOps services to newer version.

Run the below command to initiate upgrading RDAF Platform services.

rdaf platform upgrade --tag 3.3

Please wait till all of the new platform service are in Up state and run the below command to verify their status and make sure all of them are running with 3.3 version.

rdaf platform status

+--------------------------+----------------+------------+--------------+------+
| Name                     | Host           | Status     | Container Id | Tag  |
+--------------------------+----------------+------------+--------------+------+
| rda_api_server           | 192.168.107.61 | Up 5 hours | 6fc70d6b82aa | 3.3  |
| rda_api_server           | 192.168.107.62 | Up 5 hours | afa31a2c614b | 3.3  |
| rda_registry             | 192.168.107.61 | Up 5 hours | 9f8adbb08b95 | 3.3  |
| rda_registry             | 192.168.107.62 | Up 5 hours | cc8e5d27eb0a | 3.3  |
| rda_scheduler            | 192.168.107.61 | Up 5 hours | f501e240e7a3 | 3.3  |
| rda_scheduler            | 192.168.107.62 | Up 5 hours | c5b2b258efe1 | 3.3  |
| rda_collector            | 192.168.107.61 | Up 5 hours | 2260fc37ebe5 | 3.3  |
| rda_collector            | 192.168.107.62 | Up 5 hours | 3e7ab4518394 | 3.3  |
+--------------------------+----------------+------------+--------------+------+

Run the below command to check rda-fsm service is up and running and also verify that one of the rda-scheduler service is elected as a leader under Site column.

rdac pods

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
| Cat       | Pod-Type                               | Host         | ID       | Site        | Health Parameter                                    | Status   | Message                                                     |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------|
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-statu                                                                             s                                      | ok       |                                                                                                                                          |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | minio-connect                                                                             ivity                                  | ok       |                                                                                                                                          |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-depen                                                                             dency:configuration-service            | ok       | 2 pod(s) found for configuration-service                                                                                                 |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-initi                                                                             alization-status                       | ok       |                                                                                                                                          |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | kafka-connect                                                                             ivity                                  | ok       | Cluster=F8PAtrvtRk6RbMZgp7deHQ, Broker=2, Brokers=[2, 3,                                                                              1] |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | service-statu                                                                             s                                      | ok       |                                                                                                                                          |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | minio-connect                                                                             ivity                                  | ok       |                                                                                                                                          |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | service-depen                                                                             dency:configuration-service            | ok       | 2 pod(s) found for configuration-service                                                                                                 |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | service-initi                                                                             alization-status                       | ok       |                                                                                                                                          |
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+

1.3.3 Upgrade rdac CLI

Run the below command to upgrade the rdac CLI

rdafk8s rdac_cli upgrade --tag 3.3

Run the below command to upgrade the rdac CLI

rdaf rdac_cli upgrade --tag 3.3

1.3.4 Upgrade RDA Worker Services

Step-1: Please run the below command to initiate upgrading the RDA Worker service PODs.

rdafk8s worker upgrade --tag 3.3

Step-2: Run the below command to check the status of the existing and newer PODs and make sure atleast one instance of each RDA Worker service POD is in Terminating state.

kubectl get pods -n rda-fabric -l app_component=rda-worker

Step-3: Run the below command to put all Terminating RDAF worker service PODs into maintenance mode. It will list all of the POD Ids of RDA worker services along with rdac maintenance command that is required to be put in maintenance mode.

python maint_command.py

Step-4: Copy & Paste the rdac maintenance command as below.

rdac maintenance start --ids <comma-separated-list-of-platform-pod-ids>

Step-5: Run the below command to verify the maintenance mode status of the RDAF worker services.

rdac pods --show_maintenance | grep False

Step-6: Run the below command to delete the Terminating RDAF worker service PODs

for i in `kubectl get pods -n rda-fabric -l app_component=rda-worker | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done

Note

Wait for 120 seconds between each RDAF worker service upgrade by repeating above steps from Step-2 to Step-6 for rest of the RDAF worker service PODs.

Step-6: Please wait for 120 seconds to let the newer version of RDA Worker service PODs join the RDA Fabric appropriately. Run the below commands to verify the status of the newer RDA Worker service PODs.

rdac pods | grep rda-worker

rdafk8s worker status

+------------+----------------+------------------+--------------+---------+
| Name       | Host           | Status           | Container Id | Tag     |
+------------+----------------+------------------+--------------+---------+
| rda-worker | 192.168.131.45 | Up 1 Days ago    | afa217d2335a | 3.3     |
| rda-worker | 192.168.131.49 | Up 1 Days ago    | e114872efc30 | 3.3     |
| rda-worker | 192.168.131.44 | Up 1 Minutes ago | 0787bdb1cfc1 | 3.3     |
| rda-worker | 192.168.131.50 | Up 3 Minutes ago | 185d3a08fa9c | 3.3     |
+------------+----------------+------------------+--------------+---------+

Step-7: Run the below command to check if all RDA Worker services has ok status and does not throw any failure messages.

rdac healthcheck
  • Upgrade RDA Worker Services

Please run the below command to initiate upgrading the RDA Worker service PODs.

rdaf worker upgrade --tag 3.3

Please wait for 120 seconds to let the newer version of RDA Worker service containers join the RDA Fabric appropriately. Run the below commands to verify the status of the newer RDA Worker service containers.

rdac pods | grep worker

rdaf worker status


+------------+----------------+------------+--------------+---------+
| Name       | Host           | Status     | Container Id | Tag     |
+------------+----------------+------------+--------------+---------+
| rda_worker | 192.168.107.61 | Up 3 hours | 4fa9c94ffe3c | 3.3     |
| rda_worker | 192.168.107.62 | Up 3 hours | c0684c26c606 | 3.3     |
+------------+----------------+------------+--------------+---------+
Run the below command to check if all RDA Worker services has ok status and does not throw any failure messages.

rdac healthcheck

1.3.5 Upgrade OIA Application Services

Step-1: Run the below commands to initiate upgrading RDAF OIA Application services

rdafk8s app upgrade OIA --tag 7.3

Step-2: Run the below command to check the status of the existing and newer PODs and make sure atleast one instance of each OIA application service is in Terminating state.

kubectl get pods -n rda-fabric -l app_name=oia

Step-3: Run the below command to put all Terminating OIA application service PODs into maintenance mode. It will list all of the POD Ids of OIA application services along with rdac maintenance command that are required to be put in maintenance mode.

python maint_command.py

Step-4: Copy & Paste the rdac maintenance command as below.

rdac maintenance start --ids <comma-separated-list-of-oia-app-pod-ids>

Step-5: Run the below command to verify the maintenance mode status of the OIA application services.

rdac pods --show_maintenance | grep False

Step-6: Run the below command to delete the Terminating OIA application service PODs

for i in `kubectl get pods -n rda-fabric -l app_name=oia | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done

kubectl get pods -n rda-fabric -l app_name=oia

Note

Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 for rest of the OIA application service PODs.

Please wait till all of the new OIA application service PODs are in Running state and run the below command to verify their status and make sure they are running with 7.3 version.

rdafk8s app status

+--------------------------------+----------------+----------------+----------------+-------+
| Name                           | Host           | Status         | Container Id   | Tag   |
+--------------------------------+----------------+----------------+----------------+-------+
| rda-alert-ingester             | 192.168.131.47 | Up 1 Days ago  | 653220e94e6b   | 7.3   |
| rda-alert-ingester             | 192.168.131.46 | Up 1 Days ago  | b15255a3efcd   | 7.3   |
| rda-alert-processor            | 192.168.131.46 | Up 3 Hours ago | f5d6f91ceb37   | 7.3   |
| rda-alert-processor            | 192.168.131.47 | Up 1 Days ago  | 48a28bcff96e   | 7.3   |
| rda-alert-processor-companion  | 192.168.131.46 | Up 1 Days ago  | 86e83ef2afa3   | 7.3   |
| rda-alert-processor-companion  | 192.168.131.47 | Up 1 Days ago  | ee74d9227837   | 7.3   |
| rda-app-controller             | 192.168.131.47 | Up 1 Days ago  | 9efeddfb6b65   | 7.3   |
+--------------------------------+----------------+----------------+----------------+-------+

Step-7: Run the below command to verify all OIA application services are up and running. Please wait till the cfxdimensions-app-irm_service has leader status under Site column.

rdac pods

+-------+----------------------------------------+-------------+----------------+----------+-------------+----------------+--------+--------------+---------------+--------------+
| Cat   | Pod-Type                               | Pod-Ready   | Host           | ID       | Site        | Age            |   CPUs |   Memory(GB) | Active Jobs   | Total Jobs   |
|-------+----------------------------------------+-------------+----------------+----------+-------------+----------------+--------+--------------+---------------+--------------|
| App   | cfxdimensions-app-access-manager       | True        | 3a164c761ac7 | 6f02493c |             | 2 days, 7:38:22 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-access-manager       | True        | d56b629c2c3b | e5ff5696 |             | 2 days, 7:38:05 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-collaboration        | True        | 8aafda236efe | 126203ec |             | 2 days, 7:11:18 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-collaboration        | True        | 3ea382fdc6af | 618a650b |             | 2 days, 7:10:58 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-file-browser         | True        | d6f0d127ab06 | deb9c0c4 |             | 2 days, 7:17:45 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-file-browser         | True        | 2b9851b95094 | 013f5b00 |             | 2 days, 7:17:25 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-irm_service          | True        | 8361c0008d18 | a9fe343e | *leader*    | 2 days, 7:12:36 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-irm_service          | True        | ca8a2cbdca81 | 8f497bb7 |             | 2 days, 7:12:14 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-notification-service | True        | dfbbcdcddafc | 8d0425ec |             | 2 days, 7:18:24 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-notification-service | True        | 753472f0a9be | 485800b5 |             | 2 days, 7:18:06 |      8 |        31.33 |               |              |
+-------+----------------------------------------+-------------+----------------+----------+-------------+-------------------+--------+-----------------------------+--------------+

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
| Cat       | Pod-Type                               | Host         | ID       | Site        | Health Parameter                                    | Status   | Message                                                     |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------|
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-status                                      | ok       |                                                             |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | minio-connectivity                                  | ok       |                                                             |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-dependency:configuration-service            | ok       | 2 pod(s) found for configuration-service                    |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-initialization-status                       | ok       |                                                             |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | kafka-connectivity                                  | ok       | Cluster=F8PAtrvtRk6RbMZgp7deHQ, Broker=3, Brokers=[2, 3, 1] |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | service-status                                      | ok       |                                                             |
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+

Upgrade Event Consumer Service to 7.3.0.1:

Step-1: Run the below commands to initiate upgrading rda-event-consumer services to 7.3.0.1 version

rdafk8s app upgrade OIA --tag 7.3.0.1 --service rda-event-consumer

Step-2: Run the below commands to check the status of rda-event-consumer service PODs and make sure atleast one instance of the service is in Terminating state.

kubectl get pods -n rda-fabric -l app_name=oia | grep rda-event-consumer

Step-3: Run the below command to put all Terminating OIA application rda-event-consumer service PODs into maintenance mode. It will list all of the POD Ids of rda-event-consumer service along with rdac maintenance command that are required to be put in maintenance mode.

python maint_command.py

Step-4: Copy & Paste the rdac maintenance command as below.

rdac maintenance start --ids <comma-separated-list-of-event-consumer-service-pod-ids>

Step-5: Run the below command to verify the maintenance mode status of the rda-event-consumer service.

rdac pods --show_maintenance | grep False

Step-6: Run the below command to delete the Terminating rda-event-consumer service PODs

for i in `kubectl get pods -n rda-fabric -l app_name=oia | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done

kubectl get pods -n rda-fabric -l app_name=oia | grep rda-event-consumer

Note

Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 for rest of the rda-event-consumer service PODs.

Please wait till all of the new rda-event-consumer service PODs are in Running state and run the below command to verify their status and make sure they are running with 7.3.0.1 version.

rdafk8s app status

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

Upgrade Alert Ingester Service to 7.3.2:

Step-1: Run the below commands to initiate upgrading rda-alert-ingester services to 7.3.2 version

rdafk8s app upgrade OIA --tag 7.3.2 --service rda-alert-ingester

Step-2: Run the below commands to check the status of rda-alert-ingester service PODs and make sure atleast one instance of the service is in Terminating state.

kubectl get pods -n rda-fabric -l app_name=oia | grep rda-alert-ingester

Step-3: Run the below command to put all Terminating OIA application rda-alert-ingester service PODs into maintenance mode. It will list all of the POD Ids of rda-alert-ingester service along with rdac maintenance command that are required to be put in maintenance mode.

python maint_command.py

Step-4: Copy & Paste the rdac maintenance command as below.

rdac maintenance start --ids <comma-separated-list-of-rda-alert-ingester-pod-ids>

Step-5: Run the below command to verify the maintenance mode status of the rda-alert-ingester service.

rdac pods --show_maintenance | grep False

Step-6: Run the below command to delete the Terminating rda-alert-ingester service PODs

for i in `kubectl get pods -n rda-fabric -l app_name=oia | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done

kubectl get pods -n rda-fabric -l app_name=oia | grep rda-alert-ingester

Note

Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 for rest of the rda-alert-ingester service PODs.

Please wait till all of the new rda-alert-ingester service PODs are in Running state and run the below command to verify their status and make sure they are running with 7.3.2 version.

rdafk8s app status

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

Run the below commands to initiate upgrading the RDA Fabric OIA Application services.

rdaf app upgrade OIA --tag 7.3

Please wait till all of the new OIA application service containers are in Up state and run the below command to verify their status and make sure they are running with 7.3 version.

rdaf app status


+-----------------------------------+----------------+------------+--------------+-----+
| Name                              | Host           | Status     | Container Id | Tag |
+-----------------------------------+----------------+------------+--------------+-----+
| cfx-rda-irm-service               | 192.168.107.66 | Up 5 hours | a53da18e68e8 | 7.3 |
| cfx-rda-irm-service               | 192.168.107.67 | Up 5 hours | ae42ce5f7c5a | 7.3 |
| cfx-rda-ml-config                 | 192.168.107.66 | Up 5 hours | 5942676cea00 | 7.3 |
| cfx-rda-ml-config                 | 192.168.107.67 | Up 5 hours | a59e44cb9950 | 7.3 |
| cfx-rda-collaboration             | 192.168.107.66 | Up 5 hours | 8465a6e01886 | 7.3 |
| cfx-rda-collaboration             | 192.168.107.67 | Up 5 hours | 610a07bd2893 | 7.3 |
| cfx-rda-ingestion-tracker         | 192.168.107.66 | Up 5 hours | fbc1c8d940ea | 7.3 |
| cfx-rda-ingestion-tracker         | 192.168.107.67 | Up 5 hours | 607212ea01e9 | 7.3 |
| cfx-rda-alert-processor-companion | 192.168.107.66 | Up 5 hours | 6cb93d1bdda0 | 7.3 |
| cfx-rda-alert-processor-companion | 192.168.107.67 | Up 5 hours | 3f8bf14adb34 | 7.3 |
+-----------------------------------+----------------+------------+--------------+-----+
Run the below command to verify all OIA application services are up and running. Please wait till the cfxdimensions-app-irm_service has leader status under Site column.

rdac pods


+-------+----------------------------------------+-------------+----------------+----------+-------------+----------------+--------+--------------+---------------+--------------+
| Cat   | Pod-Type                               | Pod-Ready   | Host           | ID       | Site        | Age            |   CPUs |   Memory(GB) | Active Jobs   | Total Jobs   |
|-------+----------------------------------------+-------------+----------------+----------+-------------+----------------+--------+--------------+---------------+--------------|
| App   | cfxdimensions-app-access-manager       | True        | bd9e264212b5 | 68f9c494 |             | 22:52:26 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-access-manager       | True        | 5695b14a7743 | 9499b9f8 |             | 22:50:52 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-collaboration        | True        | 8465a6e01886 | cefbcfaa |             | 22:23:26 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-collaboration        | True        | 610a07bd2893 | d33b198b |             | 22:23:05 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-file-browser         | True        | 88352870e685 | e6ca73b0 |             | 22:31:19 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-file-browser         | True        | 18cdb22d4439 | 56e874fd |             | 22:30:57 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-irm_service          | True        | a53da18e68e8 | cdaf8950 | *leader*    | 22:25:01 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-irm_service          | True        | ae42ce5f7c5a | 472c324a |             | 22:24:39 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-notification-service | True        | a11edf83127d | ba7d0978 |             | 22:32:15 |      8 |        31.33 |               |              |
| App   | cfxdimensions-app-notification-service | True        | 458a0b43be9f | 2289a696 |             | 22:31:53 |      8 |        31.33 |               |              |
+-------+----------------------------------------+-------------+----------------+----------+-------------+-------------------+--------+-----------------------------+--------------+
Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
| Cat       | Pod-Type                               | Host         | ID       | Site        | Health Parameter                                    | Status   | Message                                                     |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------|
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-status                                      | ok       |                                                             |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | minio-connectivity                                  | ok       |                                                             |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-dependency:configuration-service            | ok       | 2 pod(s) found for configuration-service                    |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | service-initialization-status                       | ok       |                                                             |
| rda_app   | alert-ingester                         | 8c2198aa42b9 | 3661b780 |             | kafka-connectivity                                  | ok       | Cluster=F8PAtrvtRk6RbMZgp7deHQ, Broker=2, Brokers=[2, 3, 1] |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | service-status                                      | ok       |                                                             |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | minio-connectivity                                  | ok       |                                                             |
| rda_app   | alert-ingester                         | 795652ebd914 | 91c603f4 |             | service-dependency:configuration-service            | ok       | 2 pod(s) found for configuration-service                    |
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+

Upgrade Event Consumer Service to 7.3.0.1:

Run the below commands to initiate upgrading the cfx-rda-event-consumer services to 7.3.0.1 version.

rdaf app upgrade OIA --tag 7.3.0.1 --service cfx-rda-event-consumer

Please wait till all of the new OIA application cfx-rda-event-consumer service containers are in Up state and run the below command to verify their status and make sure they are running with 7.3.0.1 version.

rdaf app status

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

Upgrade Alert Ingester Service to 7.3.2:

Run the below commands to initiate upgrading the cfx-rda-alert-ingester services to 7.3.2 version.

rdaf app upgrade OIA --tag 7.3.2 --service cfx-rda-alert-ingester

Please wait till all of the new OIA application cfx-rda-alert-ingester service containers are in Up state and run the below command to verify their status and make sure they are running with 7.3.2 version.

rdaf app status

Run the below command to check if all services has ok status and does not throw any failure messages.

rdac healthcheck

1.4.Post Upgrade Steps

1.4.1 OIA

1. Deploy latest l1&l2 bundles. Go to Configuration --> RDA Administration --> Bundles --> Select oia_l1_l2_bundle and Click on deploy action

2. Enable ML experiments manually if any experiments are configured Organization --> Configuration --> ML Experiments

3. By default resizableColumns: false for alerts and incidents tabular report. If you want to resizable for alerts and incidents tabular report then make it true. Go to user Configuration -> RDA Administration -> User Dashboards then search below Dashboard

a) oia-alert-group-view-alerts-os

b) oia-alert-group-view-details-os

c) oia-alert-groups-os

d) oia-alert-tracking-os

e) oia-alerts-os

f) oia-event-tracking-os

g) oia-event-tracking-view-alerts

h) oia-incident-alerts-os

i) oia-view-alerts-policy

j) oia-view-groups-policy

k) incident-collaboration

l) oia-incidents-os-template

m) oia-incidents-os

n) oia-incidents

o) oia-my-incidents

Images_resizable_columns

4. Update oia-alerts-stream pstream definition to have default values for a_ticket_id as Not Available.(RDA Administration → Persistent Stream → oia-alerts stream → Edit)

Images_a_ticket_id

Images_oia_alerts_stream

1. Deploy latest l1&l2 bundles. Go to Configuration --> RDA Administration --> Bundles --> Select oia_l1_l2_bundle and Click on deploy action

2. Enable ML experiments manually if any experiments are configured Organization --> Configuration --> ML Experiments

3. Update oia-alerts-stream pstream definition to have default values for a_ticket_id as Not Available.(RDA Administration → Persistent Stream → oia-alerts stream → Edit)

Images_a_ticket_id

4. By default resizableColumns: false for alerts and incidents tabular report. If you want to resizable for alerts and incidents tabular report then make it true. Go to user Configuration -> RDA Administration -> User Dashboards then search below Dashboard

a) oia-alert-group-view-alerts-os

b) oia-alert-group-view-details-os

c) oia-alert-groups-os

d) oia-alert-tracking-os

e) oia-alerts-os

f) oia-event-tracking-os

g) oia-event-tracking-view-alerts

h) oia-incident-alerts-os

i) oia-view-alerts-policy

j) oia-view-groups-policy

k) incident-collaboration

l) oia-incidents-os-template

m) oia-incidents-os

n) oia-incidents

o) oia-my-incidents

Images_resizable_columns

1.4.2 DNAC

1. Deploy latest dna_center_bundle bundle from Configuration → RDA Integrations → Bundles → Click deploy action row level for dna_center_bundle.

2. Upload latest dictionaries of device_family_alias and dnac_building dictionaries

wget https://macaw-amer.s3.amazonaws.com/releases/OIA/7.3/dnac_3_3_dictionaries.tar.gz

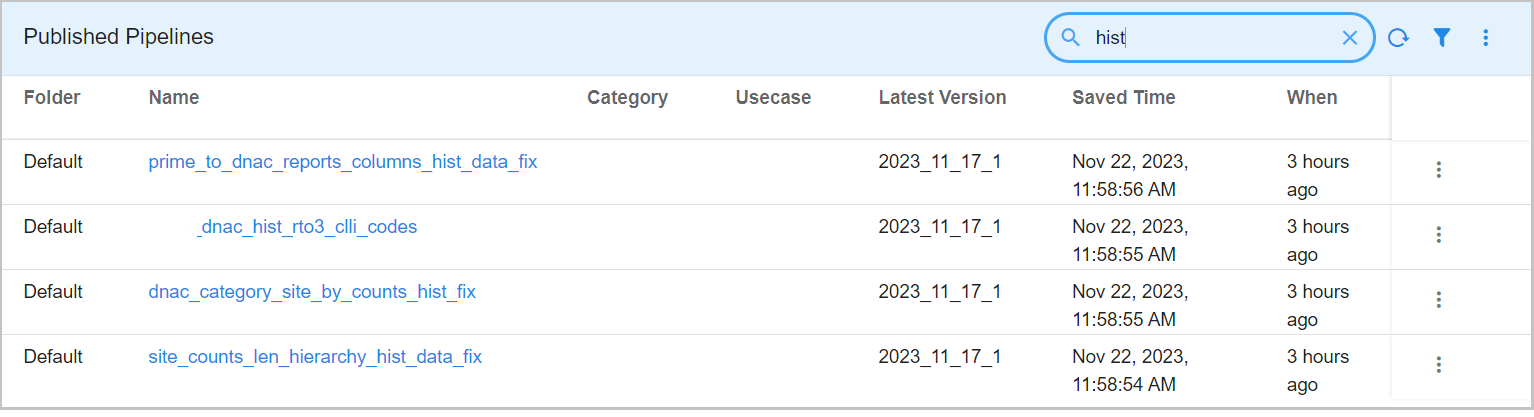

3. Need to Run Historical Data pipelines (4 of them) which are in published pipelines. All these pipelines need to be executed based on the data and by changing the query for a specific set of data to be filtered and execute the pipeline on specific rows.

4. Once Historical data pipelines execution is successfully completed (which might take a couple of hours to complete), We need to delete all 4 pipelines as shown in the screenshot.

Images_historical_Pipeline

Note

Update the schedule timings in Service Blueprints after the deployment as per the requirement.
