Upgrade to 3.8.0 and 7.8.0
1. Upgrade to 3.8.0 and 7.8.0
RDAF Platform: From 3.7.2 to 3.8.0
AIOps (OIA) Application: From 7.7.2 to 7.8.0
RDAF Deployment CLI: From 1.3.2 to 1.3.3 and 1.3.2 to 1.3.4
RDAF Client rdac CLI: From 3.7.2 to 3.8.0
RDAF Platform: From 3.7.2 to 3.8.0
OIA (AIOps) Application: From 7.7.2 to 7.8.0
RDAF Deployment CLI: From 1.3.2 to 1.3.3
RDAF Client rdac CLI: From 3.7.2 to 3.8.0
1.1 Prerequisites
Before proceeding with this upgrade, please make sure and verify the below prerequisites are met.
Currently deployed CLI and RDAF services are running the below versions.
-
RDAF Deployment CLI version: 1.3.2
-
Infra Services tag: 1.0.3 / 1.0.3.3 (haproxy)
-
GraphDB Tag: 1.0.3
-
Platform Services and RDA Worker tag: 3.7.2
-
OIA Application Services tag: 7.7.2
-
Each OpenSearch node requires an additional 100 GB of disk space to support both the ingestion of new alert payloads and the migration of alert history data to the pstream.
-
CloudFabrix recommends taking VMware VM snapshots where RDA Fabric infra/platform/applications are deployed
Note
- Check the Disk space of all the Platform and Service Vm's using the below mentioned command, the highlighted disk size should be less than 80%
rdauser@oia-125-216:
Filesystem Size Used Avail Use% Mounted on
udev 32G 0 32G 0% /dev
tmpfs 6.3G 357M 6.0G 6% /run
/dev/mapper/ubuntu--vg-ubuntu--lv 48G 12G 34G 26% /
tmpfs 32G 0 32G 0% /dev/shm
tmpfs 5.0M 0 5.0M 0% /run/lock
tmpfs 32G 0 32G 0% /sys/fs/cgroup
/dev/loop0 64M 64M 0 100% /snap/core20/2318
/dev/loop2 92M 92M 0 100% /snap/lxd/24061
/dev/sda2 1.5G 309M 1.1G 23% /boot
/dev/sdf 50G 3.8G 47G 8% /var/mysql
/dev/loop3 39M 39M 0 100% /snap/snapd/21759
/dev/sdg 50G 541M 50G 2% /minio-data
/dev/loop4 92M 92M 0 100% /snap/lxd/29619
/dev/loop5 39M 39M 0 100% /snap/snapd/21465
/dev/sde 15G 140M 15G 1% /zookeeper
/dev/sdd 30G 884M 30G 3% /kafka-logs
/dev/sdc 50G 3.3G 47G 7% /opt
/dev/sdb 50G 29G 22G 57% /var/lib/docker
/dev/sdi 25G 294M 25G 2% /graphdb
/dev/sdh 50G 34G 17G 68% /opensearch
/dev/loop6 64M 64M 0 100% /snap/core20/2379
- Check all MariaDB nodes are sync on HA setup using below commands before start upgrade
Tip
Please run the below commands on the VM host where RDAF deployment CLI was installed and rdafk8s setup command was run. The mariadb configuration is read from /opt/rdaf/rdaf.cfg file.
MARIADB_HOST=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep datadir | awk '{print $3}' | cut -f1 -d'/'`
MARIADB_USER=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep user | awk '{print $3}' | base64 -d`
MARIADB_PASSWORD=`cat /opt/rdaf/rdaf.cfg | grep -A3 mariadb | grep password | awk '{print $3}' | base64 -d`
mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST -P3307 -e "show status like 'wsrep_local_state_comment';"
Please verify that the mariadb cluster state is in Synced state.
+---------------------------+--------+
| Variable_name | Value |
+---------------------------+--------+
| wsrep_local_state_comment | Synced |
+---------------------------+--------+
Please run the below command and verify that the mariadb cluster size is 3.
mysql -u$MARIADB_USER -p$MARIADB_PASSWORD -h $MARIADB_HOST -P3307 -e "SHOW GLOBAL STATUS LIKE 'wsrep_cluster_size'";
+--------------------+-------+
| Variable_name | Value |
+--------------------+-------+
| wsrep_cluster_size | 3 |
+--------------------+-------+
Warning
Make sure all of the above pre-requisites are met before proceeding with the upgrade process.
Warning
Kubernetes: Though Kubernetes based RDA Fabric deployment supports zero downtime upgrade, it is recommended to schedule a maintenance window for upgrading RDAF Platform and AIOps services to newer version.
Important
Please make sure full backup of the RDAF platform system is completed before performing the upgrade.
Kubernetes: Please run the below backup command to take the backup of application data.
Run the below command on RDAF Management system and make sure the Kubernetes PODs are NOT in restarting mode (it is applicable to only Kubernetes environment)
- Verify that RDAF deployment
rdafcli version is 1.3.2 on the VM where CLI was installed for docker on-prem registry managing Kubernetes or Non-kubernetes deployments.
- On-premise docker registry service version is 1.0.3
ff6b1de8515f cfxregistry.CloudFabrix.io:443/docker-registry:1.0.3 "/entrypoint.sh /bin…" 7 days ago Up 7 days deployment-scripts-docker-registry-1
-
RDAF Infrastructure services version is 1.0.3 except for below services.
-
rda-minio: version is
RELEASE.2023-09-30T07-02-29Z -
haproxy: version is 1.0.3.3
Run the below command to get rdafk8s Infra service details
- RDAF Platform services version is 3.7.2
Run the below command to get RDAF Platform services details
- RDAF OIA Application services version is 7.7.2
Run the below command to get RDAF App services details
Create oia-alerts-payload Pstream
-
Check and Create
oia-alerts-payloadPstream- First, check if the
oia-alerts-payloadpstream already exists within the system. Navigate to Main Menu --> Configuration --> RDA Administration --> Persistent Streams to verify its presence. -

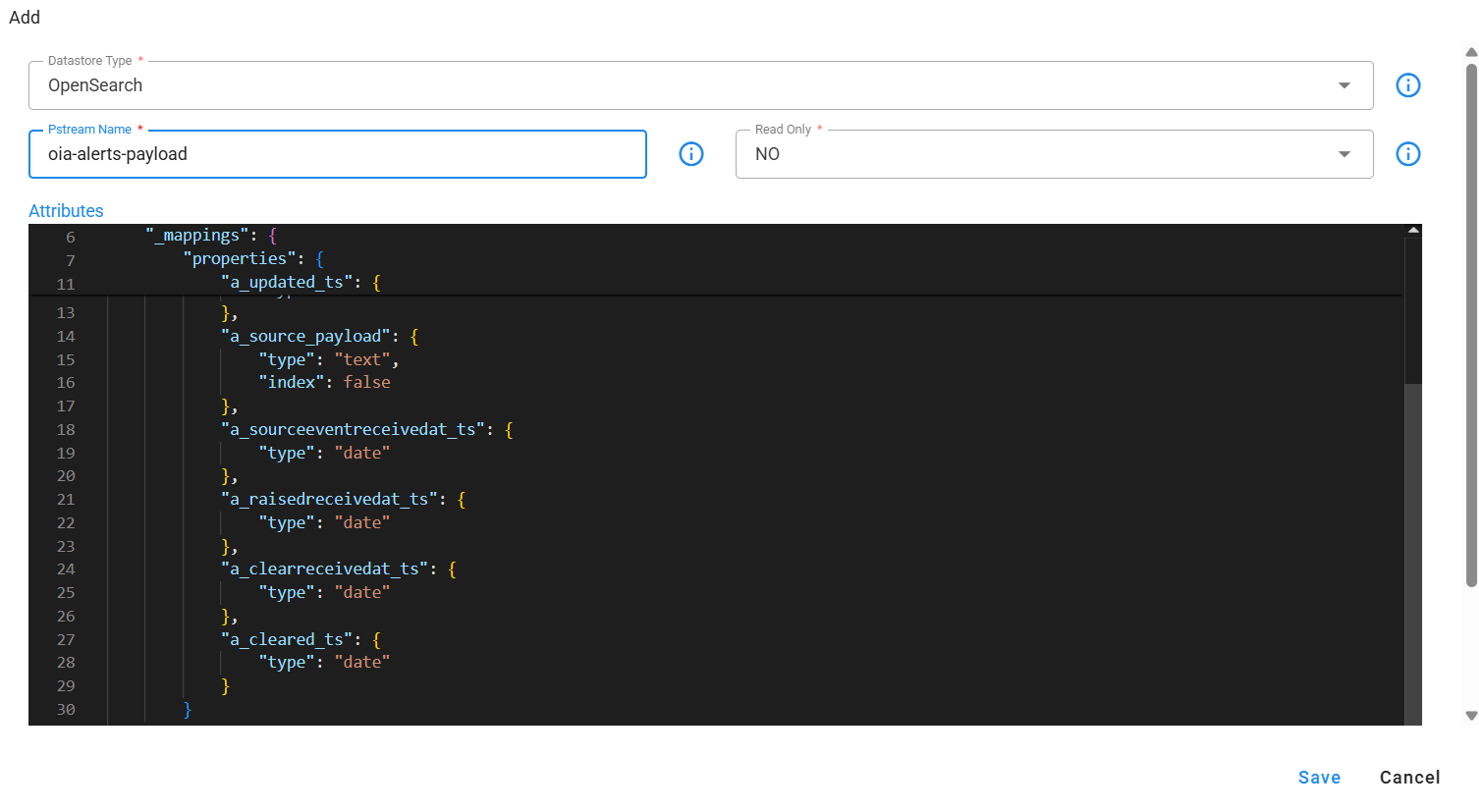

Create Pstream if Missing
- If the
oia-alerts-payloadpstream is not found, create it using the definition provided below. To create a new pstream, go to Main Menu --> Configuration --> RDA Administration --> Persistent Streams --> Add using the appropriate definition.
Click to view the definition of oia-alerts-payload pstream
{
"unique_keys": [
"a_id"
],
"_mappings": {
"properties": {
"a_created_ts": {
"type": "date"
},
"a_updated_ts": {
"type": "date"
},
"a_source_payload_compressed": {
"type": "boolean"
},
"a_source_payload": {
"type": "text",
"index": false
},
"a_sourceeventreceivedat_ts": {
"type": "date"
},
"a_raisedreceivedat_ts": {
"type": "date"
},
"a_clearreceivedat_ts": {
"type": "date"
},
"a_cleared_ts": {
"type": "date"
}
}
},
"default_values": {},
"case_insensitive": true
}
Currently deployed CLI and RDAF services are running the below versions.
-
RDAF Deployment CLI version: 1.3.2
-
Infra Services tag: 1.0.3 / 1.0.3.3 (haproxy)
-
GraphDB Tag: 1.0.3
-
Platform Services and RDA Worker tag: 3.7.2
-
OIA Application Services tag: 7.7.2
-
Each OpenSearch node requires an additional 100 GB of disk space to support both the ingestion of new alert payloads and the migration of alert history data to the pstream.
-
CloudFabrix recommends taking VMware VM snapshots where RDA Fabric infra/platform/applications are deployed
Note
- Check the Disk space of all the Platform and Service Vm's using the below mentioned command, the highlighted disk size should be less than 80%
rdauser@oia-125-216:
Filesystem Size Used Avail Use% Mounted on
udev 32G 0 32G 0% /dev
tmpfs 6.3G 357M 6.0G 6% /run
/dev/mapper/ubuntu--vg-ubuntu--lv 48G 12G 34G 26% /
tmpfs 32G 0 32G 0% /dev/shm
tmpfs 5.0M 0 5.0M 0% /run/lock
tmpfs 32G 0 32G 0% /sys/fs/cgroup
/dev/loop0 64M 64M 0 100% /snap/core20/2318
/dev/loop2 92M 92M 0 100% /snap/lxd/24061
/dev/sda2 1.5G 309M 1.1G 23% /boot
/dev/sdf 50G 3.8G 47G 8% /var/mysql
/dev/loop3 39M 39M 0 100% /snap/snapd/21759
/dev/sdg 50G 541M 50G 2% /minio-data
/dev/loop4 92M 92M 0 100% /snap/lxd/29619
/dev/loop5 39M 39M 0 100% /snap/snapd/21465
/dev/sde 15G 140M 15G 1% /zookeeper
/dev/sdd 30G 884M 30G 3% /kafka-logs
/dev/sdc 50G 3.3G 47G 7% /opt
/dev/sdb 50G 29G 22G 57% /var/lib/docker
/dev/sdi 25G 294M 25G 2% /graphdb
/dev/sdh 50G 34G 17G 68% /opensearch
/dev/loop6 64M 64M 0 100% /snap/core20/2379
Warning
Make sure all of the above pre-requisites are met before proceeding with the upgrade process.
Warning
Non-Kubernetes: Upgrading RDAF Platform and AIOps application services is a disruptive operation. Schedule a maintenance window before upgrading RDAF Platform and AIOps services to newer version.
Important
Please make sure full backup of the RDAF platform system is completed before performing the upgrade.
Non-Kubernetes: Please run the below backup command to take the backup of application data.
Note: Please make sure this backup-dir is mounted across all infra,cli vms.- Verify that RDAF deployment
rdafcli version is 1.3.2 on the VM where CLI was installed for docker on-prem registry managing Kubernetes or Non-kubernetes deployments.
- On-premise docker registry service version is 1.0.3
ff6b1de8515f cfxregistry.CloudFabrix.io:443/docker-registry:1.0.3 "/entrypoint.sh /bin…" 7 days ago Up 7 days deployment-scripts-docker-registry-1
-
RDAF Infrastructure services version is 1.0.3 except for below services.
-
rda-minio: version is
RELEASE.2023-09-30T07-02-29Z -
haproxy: version is
1.0.3.3
Run the below command to get RDAF Infra service details
- RDAF Platform services version is 3.7.2
Run the below command to get RDAF Platform services details
- RDAF OIA Application services version is 7.7.2
Run the below command to get RDAF App services details
Create oia-alerts-payload Pstream
-
Check and Create
oia-alerts-payloadPstream- First, check if the
oia-alerts-payloadpstream already exists within the system. Navigate to Main Menu --> Configuration --> RDA Administration --> Persistent Streams to verify its presence. -
Create Pstream if Missing
- If the
oia-alerts-payloadpstream is not found, create it using the definition provided below. To create a new pstream, go to Main Menu --> Configuration --> RDA Administration --> Persistent Streams --> Add using the appropriate definition.
Click to view the definition of oia-alerts-payload pstream
{
"unique_keys": [
"a_id"
],
"_mappings": {
"properties": {
"a_created_ts": {
"type": "date"
},
"a_updated_ts": {
"type": "date"
},
"a_source_payload_compressed": {
"type": "boolean"
},
"a_source_payload": {
"type": "text",
"index": false
},
"a_sourceeventreceivedat_ts": {
"type": "date"
},
"a_raisedreceivedat_ts": {
"type": "date"
},
"a_clearreceivedat_ts": {
"type": "date"
},
"a_cleared_ts": {
"type": "date"
}
}
},
"default_values": {},
"case_insensitive": true
}
1.2 RDAF Deployment CLI Upgrade
Please follow the below given steps.
Note
Upgrade RDAF Deployment CLI on both on-premise docker registry VM and RDAF Platform's management VM if provisioned separately.
Important
If the CLI is already at version 1.3.2 please upgrade to 1.3.4 to complete the upgrade sequence.
Login into the VM where rdaf deployment CLI was installed for docker on-premise registry and managing Kubernetes or Non-kubernetes deployment.
- Download the RDAF Deployment CLI's newer version 1.3.4 bundle.
wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.4/rdafcli-1.3.4.tar.gz
- Upgrade the
rdafk8sCLI to version 1.3.4
- Verify the installed
rdafk8sCLI version is upgraded to 1.3.4
- Download the RDAF Deployment CLI's newer version 1.3.4 bundle and copy it to RDAF CLI management VM on which
rdafdeployment CLI was installed.
wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.4/offline-rhel-1.3.4.tar.gz
- Extract the
rdafCLI software bundle contents
- Change the directory to the extracted directory
- Upgrade the
rdafCLI to version 1.3.4
- Verify the installed
rdafCLI version
Note
Please download the upgrade script and execute it from the CLI VM.
wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.3/rdaf_upgrade_132_133.py
After executing the above script, a backup of the existing values.yaml file will be created in /opt/rdaf/deployment-scripts. A new values.yaml file will be generated with the parameter privileged: true added for all services, including platform, worker, event_gateway, and app.
rda_api_server:
mem_limit: 4G
memswap_limit: 4G
privileged: true
environment:
RDA_STUDIO_URL: '""'
RDA_ENABLE_TRACES: 'no'
DISABLE_REMOTE_LOGGING_CONTROL: 'no'
RDA_SELF_HEALTH_RESTART_AFTER_FAILURES: 3
deployment: true
Please download the upgrade script and execute it from the CLI VM.
wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.4/rdaf_upgrade_133_134.py
rdauser@kubmaster10830:~$ python rdaf_upgrade_133_134.py upgrade
Creating backup of existing haproxy.cfg on host 192.168.108.31
Updating haproxy configs on host 192.168.108.31..
service/rdaf-webhook patched
backend webhook
mode http
balance roundrobin
stick-table type ip size 10k expire 10m
stick on src
option httpchk OPTIONS /webhooks/hookid
http-check expect rstatus (2|3)[0-9][0-9]
http-check disable-on-404
http-response set-header Cache-Control no-store
http-response set-header Pragma no-cache
default-server inter 10s downinter 5s fall 3 rise 2
cookie SERVERID insert indirect nocache maxidle 30m maxlife 24h httponly secure
server rdaf-webhook-1 10.95.108.32:31389 check cookie rdaf-webhook-1
Once the upgrade script has been executed, restart the HAProxy service to apply the changes.
- Download the RDAF Deployment CLI's newer version 1.3.3 bundle
wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.3/rdafcli-1.3.3.tar.gz
- Upgrade the
rdafCLI to version 1.3.3
- Verify the installed
rdafCLI version is upgraded to 1.3.3
- Download the RDAF Deployment CLI's newer version 1.3.3 bundle and copy it to RDAF management VM on which
rdaf & rdafk8sdeployment CLI was installed.
wget https://macaw-amer.s3.us-east-1.amazonaws.com/releases/rdaf-platform/1.3.3/offline-rhel-1.3.3.tar.gz
- Extract the
rdafCLI software bundle contents
- Change the directory to the extracted directory
- Upgrade the
rdafCLI to version 1.3.3
- Verify the installed
rdafCLI version
Note
Please download the upgrade script and execute it from the CLI VM.
After executing the above script, a backup of the existing values.yaml file will be created in /opt/rdaf/deployment-scripts. A new values.yaml file will be generated with the parameter privileged: true added for all services, including platform, worker, event_gateway, and app.
1.3 Download the new Docker Images
Download the new docker image tags for RDAF Platform and OIA (AIOps) Application services and wait until all of the images are downloaded.
Note
If the Download of the images fail, Please re-execute the above command
Run the below command to verify above mentioned tags are downloaded for all of the RDAF Platform and OIA (AIOps) Application services.
Please make sure 3.8.0 image tag is downloaded for the below RDAF Platform services.
- rda-client-api-server
- rda-registry
- rda-scheduler
- rda-collector
- rda-identity
- rda-fsm
- rda-asm
- rda-stack-mgr
- rda-access-manager
- rda-resource-manager
- rda-user-preferences
- onprem-portal
- onprem-portal-nginx
- rda-worker-all
- onprem-portal-dbinit
- cfxdx-nb-nginx-all
- rda-event-gateway
- rda-chat-helper
- rdac
- rdac-full
- cfxcollector
- bulk_stats
Please make sure 3.8.1 image tag is downloaded for the below RDAF Platform services.
- rda-client-api-server
- rda-collector
Please make sure 7.8.0 image tag is downloaded for the below RDAF OIA (AIOps) Application services.
- rda-app-controller
- rda-file-browser
- rda-smtp-server
- rda-ingestion-tracker
- rda-reports-registry
- rda-ml-config
- rda-webhook-server
- rda-irm-service
- rda-notification-service
- rda-configuration-service
Please make sure 7.8.1 image tag is downloaded for the below RDAF OIA (AIOps) Application services.
- rda-alert-processor-companion
- rda-collaboration
Please make sure 7.8.1.3 image tag is downloaded for the below RDAF OIA (AIOps) Application services.
- rda-alert-processor
- rda-event-consumer
- rda-alert-ingester
Downloaded Docker images are stored under the below path.
/opt/rdaf-registry/data/docker/registry/v2/ or /opt/rdaf/data/docker/registry/v2/
Run the below command to check the filesystem's disk usage on offline registry VM where docker images are pulled.
If necessary, older image tags that are no longer in use can be deleted to free up disk space using the command below.
Note
Run the command below if /opt occupies more than 80% of the disk space or if the free capacity of /opt is less than 25GB.
1.4 Upgrade Steps
1.4.1 Upgrade RDAF Platform Services
Step-1: Run the below command to initiate upgrading RDAF Platform services.
As the upgrade procedure is a non-disruptive upgrade, it puts the currently running PODs into Terminating state and newer version PODs into Pending state.
Step-2: Run the below command to check the status of the existing and newer PODs and make sure atleast one instance of each Platform service is in Terminating state.
Step-3: Run the below command to put all Terminating RDAF platform service PODs into maintenance mode. It will list all of the POD Ids of platform services along with rdac maintenance command that required to be put in maintenance mode.
Note
If maint_command.py script doesn't exist on RDAF deployment CLI VM, it can be downloaded using the below command.
Step-4: Copy & Paste the rdac maintenance command as below.
Step-5: Run the below command to verify the maintenance mode status of the RDAF platform services.
Step-6: Run the below command to delete the Terminating RDAF platform service PODs
for i in `kubectl get pods -n rda-fabric -l app_category=rdaf-platform | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done
Note
Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 for rest of the RDAF Platform service PODs.
Please wait till all of the new platform service PODs are in Running state and run the below command to verify their status and make sure all of them are running with 3.8.0 version.
+---------------+----------------+---------------+--------------+-------+
| Name | Host | Status | Container Id | Tag |
+---------------+----------------+---------------+--------------+-------+
| rda-api- | 192.168.108.32 | Up 8 Hours | 8623d931221b | 3.8.0 |
| server | | ago | | |
| rda-registry | 192.168.108.31 | Up 9 Hours | 28a2f21b00d5 | 3.8.0 |
| | | ago | | |
| rda-identity | 192.168.108.31 | Up 9 Hours | 078db9aee291 | 3.8.0 |
| | | ago | | |
| rda-fsm | 192.168.108.31 | Up 9 Hours | a9707f0ed462 | 3.8.0 |
| | | ago | | |
| rda-asm | 192.168.108.31 | Up 9 Hours | 5a14d725feb1 | 3.8.0 |
| | | ago | | |
| rda-chat- | 192.168.108.31 | Up 9 Hours | 86fedee7ddfa | 3.8.0 |
| helper | | ago | | |
| rda-access- | 192.168.108.31 | Up 9 Hours | f038498ea8ca | 3.8.0 |
| manager | | ago | | |
| rda-resource- | 192.168.108.31 | Up 9 Hours | cf8ef77a530f | 3.8.0 |
| manager | | ago | | |
| rda-scheduler | 192.168.108.31 | Up 9 Hours | de9cabea95d8 | 3.8.0 |
| | | ago | | |
| rda-asset- | 192.168.108.31 | Up 9 Hours | 61e3c57b6b91 | 3.8.0 |
| dependency | | ago | | |
| rda-collector | 192.168.108.31 | Up 9 Hours | c5c96ff9d77c | 3.8.0 |
| | | ago | | |
| rda-user- | 192.168.108.31 | Up 9 Hours | 00b24aa1ce61 | 3.8.0 |
| preferences | | ago | | |
| rda-portal- | 192.168.108.31 | Up 9 Hours | b50c376bbbec | 3.8.0 |
| backend | | ago | | |
| rda-portal- | 192.168.108.31 | Up 9 Hours | 2d7c210d9943 | 3.8.0 |
| frontend | | ago | | |
+---------------+----------------+---------------+--------------+-------+
Run the below command to check the rda-scheduler service is elected as a leader under Site column.
+-------+----------------------------------------+-------------+----------------+----------+-------------+---------+--------+--------------+---------------+--------------+
| Cat | Pod-Type | Pod-Ready | Host | ID | Site | Age | CPUs | Memory(GB) | Active Jobs | Total Jobs |
|-------+----------------------------------------+-------------+----------------+----------+-------------+---------+--------+--------------+---------------+--------------|
| App | webhook-server | True | rda-webhook-se | 9f53d99f | | 1:08:29 | 8 | 31.33 | | |
| App | webhook-server | True | rda-webhook-se | a6c3f6df | | 1:06:56 | 8 | 31.33 | | |
| Infra | api-server | True | rda-api-server | c810ccba | | 1:46:47 | 8 | 31.33 | | |
| Infra | api-server | True | rda-api-server | fd51cec6 | | 1:44:33 | 8 | 31.33 | | |
| Infra | asm | True | rda-asm-657db5 | 1ab3a8ac | | 1:45:52 | 8 | 31.33 | | |
| Infra | asm | True | rda-asm-657db5 | 901817a6 | | 1:44:38 | 8 | 31.33 | | |
| Infra | collector | True | rda-collector- | a829b2b5 | | 1:48:21 | 8 | 31.33 | | |
| Infra | collector | True | rda-collector- | 4ca5e9b8 | | 1:48:08 | 8 | 31.33 | | |
| Infra | rapid-ingestion-service | True | rda-bulk-stats | acd8eb36 | | 2:38:28 | 8 | 31.33 | | |
| Infra | rapid-ingestion-service | True | rda-bulk-stats | 4e0e7f02 | | 2:38:19 | 8 | 31.33 | | |
| Infra | registry | True | rda-registry-6 | 97b929ac | | 1:48:19 | 8 | 31.33 | | |
| Infra | registry | True | rda-registry-6 | 54bbc91a | | 1:48:05 | 8 | 31.33 | | |
| Infra | scheduler | True | rda-scheduler- | 4d9993d0 | | 1:46:57 | 8 | 31.33 | | |
| Infra | scheduler | True | rda-scheduler- | 7fdbf090 | *leader* | 1:46:53 | 8 | 31.33 | | |
| Infra | worker | True | rda-worker-7cd | 589dc400 | rda-site-01 | 1:22:37 | 8 | 31.33 | 0 | 0 |
| Infra | worker | True | rda-worker-7cd | f46631ec | rda-site-01 | 1:20:24 | 8 | 31.33 | 0 | 0 |
+-------+----------------------------------------+-------------+----------------+----------+-------------+----------+--------+--------------+---------------+--------------+
Run the below command to check if all services has ok status and does not throw any failure messages.
Warning
For Non-Kubernetes deployment, upgrading RDAF Platform and AIOps application services is a disruptive operation when rolling-upgrade option is not used. Please schedule a maintenance window before upgrading RDAF Platform and AIOps services to newer version.
Run the below command to initiate upgrading RDAF Platform services with zero downtime
Note
timeout <10> mentioned in the above command represents as Seconds
Note
The rolling-upgrade option upgrades the Platform services running in high-availability mode on one VM at a time in sequence. It completes the upgrade of Platform services running on VM-1 before upgrading them on VM-2, followed by VM-3, and so on.
During this upgrade sequence, RDAF platform continues to function without any impact to the application traffic.
After completing the Platform services upgrade on all VMs, it will ask for user confirmation to delete the older version Platform service PODs. The user has to provide YES to delete the old docker containers (in non-k8s)
192.168.133.95:5000/onprem-portal-nginx:3.8.0
2024-08-12 02:21:58,875 [rdaf.component.platform] INFO - Gathering platform container details.
2024-08-12 02:22:01,326 [rdaf.component.platform] INFO - Gathering rdac pod details.
+----------+----------------------+---------+---------+--------------+-------------+------------+
| Pod ID | Pod Type | Version | Age | Hostname | Maintenance | Pod Status |
+----------+----------------------+---------+---------+--------------+-------------+------------+
| 3a5ff878 | api-server | 3.8.0 | 2:34:09 | 5119921f9c1c | None | True |
| 689c2574 | registry | 3.8.0 | 3:23:10 | d21676c0465b | None | True |
| 0d03f649 | scheduler | 3.8.0 | 2:34:46 | dd699a1d15af | None | True |
| 0496910a | collector | 3.8.0 | 3:22:40 | 1c367e3bf00a | None | True |
| c4a88eb7 | asset-dependency | 3.8.0 | 3:22:25 | cdb3f4c76deb | None | True |
| 9562960a | authenticator | 3.8.0 | 3:22:09 | 8bda6c86a264 | None | True |
| ae8b58e5 | asm | 3.8.0 | 3:21:54 | 8f0f7f773907 | None | True |
| 1cea350e | fsm | 3.8.0 | 3:21:37 | 1ea1f5794abb | None | True |
| 32fa2f93 | chat-helper | 3.8.0 | 3:21:23 | 811cbcfba7a2 | None | True |
| 0e6f375c | cfxdimensions-app- | 3.8.0 | 3:21:07 | 307c140f99c2 | None | True |
| | access-manager | | | | | |
| 4130b2d4 | cfxdimensions-app- | 3.8.0 | 2:24:23 | 2d73c36426fe | None | True |
| | resource-manager | | | | | |
| 29caf947 | user-preferences | 3.8.0 | 3:20:36 | 3e2b5b7e6cb4 | None | True |
+----------+----------------------+---------+---------+--------------+-------------+------------+
Continue moving above pods to maintenance mode? [yes/no]: yes
2024-09-30 02:23:04,389 [rdaf.component.platform] INFO - Initiating Maintenance Mode...
2024-09-30 02:23:10,048 [rdaf.component.platform] INFO - Waiting for services to be moved to maintenance.
2024-09-30 02:23:32,511 [rdaf.component.platform] INFO - Following container are in maintenance mode
+----------+----------------------+---------+---------+--------------+-------------+------------+
| Pod ID | Pod Type | Version | Age | Hostname | Maintenance | Pod Status |
+----------+----------------------+---------+---------+--------------+-------------+------------+
| 3a5ff878 | api-server | 3.8.0 | 2:34:49 | 5119921f9c1c | maintenance | False |
| ae8b58e5 | asm | 3.8.0 | 3:22:34 | 8f0f7f773907 | maintenance | False |
| c4a88eb7 | asset-dependency | 3.8.0 | 3:23:05 | cdb3f4c76deb | maintenance | False |
| 9562960a | authenticator | 3.8.0 | 3:22:49 | 8bda6c86a264 | maintenance | False |
| 0e6f375c | cfxdimensions-app- | 3.8.0 | 3:21:47 | 307c140f99c2 | maintenance | False |
| | access-manager | | | | | |
| 4130b2d4 | cfxdimensions-app- | 3.8.0 | 2:25:03 | 2d73c36426fe | maintenance | False |
| | resource-manager | | | | | |
| 32fa2f93 | chat-helper | 3.8.0 | 3:22:03 | 811cbcfba7a2 | maintenance | False |
| 0496910a | collector | 3.8.0 | 3:23:20 | 1c367e3bf00a | maintenance | False |
| 1cea350e | fsm | 3.8.0 | 3:22:17 | 1ea1f5794abb | maintenance | False |
| 689c2574 | registry | 3.8.0 | 3:23:50 | d21676c0465b | maintenance | False |
| 0d03f649 | scheduler | 3.8.0 | 2:35:26 | dd699a1d15af | maintenance | False |
| 29caf947 | user-preferences | 3.8.0 | 3:21:16 | 3e2b5b7e6cb4 | maintenance | False |
+----------+----------------------+---------+---------+--------------+-------------+------------+
2024-08-12 02:23:10,052 [rdaf.component.platform] INFO - Waiting for timeout of 5 seconds...
2024-08-12 02:23:15,060 [rdaf.component.platform] INFO - Upgrading service: rda_api_server on host 192.168.133.92
Run the below command to initiate upgrading RDAF Platform services without zero downtime
Please wait till all of the new platform services are in Up state and run the below command to verify their status and make sure all of them are running with 3.8.0 version.
+---------------+-----------------+-------------+--------------+-------+
| Name | Host | Status | Container Id | Tag |
+---------------+-----------------+-------------+--------------+-------+
| rda_api_serve | 192.168.107.126 | Up 25 hours | 8bc1f423409e | 3.8.0 |
| r | | | | |
| rda_registry | 192.168.107.126 | Up 25 hours | f0f8cbc100e7 | 3.8.0 |
| rda_scheduler | 192.168.107.126 | Up 25 hours | 46a171bcb79b | 3.8.0 |
| rda_collector | 192.168.107.126 | Up 25 hours | cec7a78793f9 | 3.8.0 |
| rda_asset_dep | 192.168.107.126 | Up 25 hours | e76026011299 | 3.8.0 |
| endency | | | | |
| rda_identity | 192.168.107.126 | Up 25 hours | 173fdd4b26bb | 3.8.0 |
| rda_asm | 192.168.107.126 | Up 25 hours | aa66c25f6ed1 | 3.8.0 |
| rda_fsm | 192.168.107.126 | Up 25 hours | c57a1102cdd0 | 3.8.0 |
| rda_chat_help | 192.168.107.126 | Up 25 hours | 88586517ba09 | 3.8.0 |
| er | | | | |
| cfx-rda- | 192.168.107.126 | Up 25 hours | 3c754cd76de2 | 3.8.0 |
| access- | | | | |
| manager | | | | |
| cfx-rda- | 192.168.107.126 | Up 25 hours | b033d5e38ee8 | 3.8.0 |
| resource- | | | | |
| manager | | | | |
| cfx-rda-user- | 192.168.107.126 | Up 25 hours | acbc9fad317e | 3.8.0 |
| preferences | | | | |
| portal- | 192.168.107.126 | Up 25 hours | 18a6960c84a7 | 3.8.0 |
| backend | | | | |
| portal- | 192.168.107.126 | Up 25 hours | a7e03b3fd2b3 | 3.8.0 |
| frontend | | | | |
+---------------+-----------------+-------------+--------------+-------+
Run the below command to check the rda-scheduler service is elected as a leader under Site column.
Run the below command to check if all services has ok status and does not throw any failure messages.
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
| Cat | Pod-Type | Host | ID | Site | Health Parameter | Status | Message |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------|
| rda_app | alert-ingester | 3ed35eed7970 | 5d7afdc2 | | service-status | ok | |
| rda_app | alert-ingester | 3ed35eed7970 | 5d7afdc2 | | minio-connectivity | ok | |
| rda_app | alert-ingester | 3ed35eed7970 | 5d7afdc2 | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | 3ed35eed7970 | 5d7afdc2 | | service-initialization-status | ok | |
| rda_app | alert-ingester | 3ed35eed7970 | 5d7afdc2 | | kafka-connectivity | ok | Cluster=NTc1NWU1MTQxYmY3MTFlZg, Broker=1, Brokers=[1, 2, 3] |
| rda_app | alert-ingester | c9bce264fe50 | r9b9231a | | service-status | ok | |
| rda_app | alert-ingester | c9bce264fe50 | r9b9231a | | minio-connectivity | ok | |
| rda_app | alert-ingester | c9bce264fe50 | r9b9231a | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | c9bce264fe50 | r9b9231a | | service-initialization-status | ok | |
| rda_app | alert-ingester | c9bce264fe50 | r9b9231a | | kafka-connectivity | ok | Cluster=NTc1NWU1MTQxYmY3MTFlZg, Broker=3, Brokers=[1, 2, 3] |
| rda_app | alert-processor | 35d9272ab400 | a78d6202 | | service-status | ok | |
| rda_app | alert-processor | 35d9272ab400 | a78d6202 | | minio-connectivity | ok | |
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
1.4.1.1 Upgrade RDAF API Server & Collector service to 3.8.1
Note
This upgrade is applicable only for Kubernetes(k8s)
- To upgrade the RDAF API Server and rda-collector service to version 3.8.1, run the following command.
Note
Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 given above for API Server service & Collector service PODs.
- Please wait till all of the new platform service PODs are in Running state and run the below command to verify their status and make sure they are running with 3.8.1 version.
+--------------------+----------------+-------------------+--------------+-------+
| Name | Host | Status | Container Id | Tag |
+--------------------+----------------+-------------------+--------------+-------+
| rda-api-server | 192.168.131.44 | Up 8 Hours ago | 8623d931221b | 3.8.1 |
| rda-api-server | 192.168.131.45 | Up 8 Hours ago | 875a3c39bfd6 | 3.8.1 |
| rda-collector | 192.168.131.44 | Up 8 Hours ago | 888b4r38bbg8 | 3.8.1 |
| rda-collector | 192.168.131.45 | Up 8 Hours ago | 898h7e69bhf7 | 3.8.1 |
+--------------------+----------------+-------------------+--------------+-------+
1.4.2 Upgrade rdac CLI
1.4.3 Upgrade RDA Worker Services
Note
If the worker was deployed in a HTTP proxy environment, please make sure the required HTTP proxy environment variables are added in /opt/rdaf/deployment-scripts/values.yaml file under rda_worker configuration section as shown below before upgrading RDA Worker services.
rda_worker:
terminationGracePeriodSeconds: 300
replicas: 6
sizeLimit: 1024Mi
privileged: true
resources:
requests:
memory: 100Mi
limits:
memory: 24Gi
env:
WORKER_GROUP: rda-prod-01
CAPACITY_FILTER: cpu_load1 <= 7.0 and mem_percent < 95
MAX_PROCESSES: '1000'
RDA_ENABLE_TRACES: 'no'
WORKER_PUBLIC_ACCESS: 'true'
DISABLE_REMOTE_LOGGING_CONTROL: 'no'
RDA_SELF_HEALTH_RESTART_AFTER_FAILURES: 3
http_proxy: "http://test:[email protected]:3128"
https_proxy: "http://test:[email protected]:3128"
HTTP_PROXY: "http://test:[email protected]:3128"
HTTPS_PROXY: "http://test:[email protected]:3128"
....
....
Step-1: Please run the below command to initiate upgrading the RDA Worker service PODs.
Step-2: Run the below command to check the status of the existing and newer PODs and make sure atleast one instance of each RDA Worker service POD is in Terminating state.
NAME READY STATUS RESTARTS AGE
rda-worker-77f459d5b9-9kdmg 1/1 Running 0 73m
rda-worker-77f459d5b9-htsmr 1/1 Running 0 74m
Step-3: Run the below command to put all Terminating RDAF worker service PODs into maintenance mode. It will list all of the POD Ids of RDA worker services along with rdac maintenance command that is required to be put in maintenance mode.
Step-4: Copy & Paste the rdac maintenance command as below.
Step-5: Run the below command to verify the maintenance mode status of the RDAF worker services.
Step-6: Run the below command to delete the Terminating RDAF worker service PODs
for i in `kubectl get pods -n rda-fabric -l app_component=rda-worker | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done
Note
Wait for 120 seconds between each RDAF worker service upgrade by repeating above steps from Step-2 to Step-6 for rest of the RDAF worker service PODs.
Step-7: Please wait for 120 seconds to let the newer version of RDA Worker service PODs join the RDA Fabric appropriately. Run the below commands to verify the status of the newer RDA Worker service PODs.
+------------+----------------+---------------+--------------+---------+
| Name | Host | Status | Container Id | Tag |
+------------+----------------+---------------+--------------+---------+
| rda-worker | 192.168.108.32 | Up 9 Hours | 67c5fee9720c | 3.8.0 |
| | | ago | | |
+------------+----------------+---------------+--------------+---------+
Step-8: Run the below command to check if all RDA Worker services has ok status and does not throw any failure messages.
Note
If the worker was deployed in a HTTP proxy environment, please make sure the required HTTP proxy environment variables are added in /opt/rdaf/deployment-scripts/values.yaml file under rda_worker configuration section as shown below before upgrading RDA Worker services.
rda_worker:
mem_limit: 8G
memswap_limit: 8G
privileged: false
environment:
RDA_ENABLE_TRACES: 'no'
RDA_SELF_HEALTH_RESTART_AFTER_FAILURES: 3
http_proxy: "http://test:[email protected]:3128"
https_proxy: "http://test:[email protected]:3128"
HTTP_PROXY: "http://test:[email protected]:3128"
HTTPS_PROXY: "http://test:[email protected]:3128"
- Upgrade RDA Worker Services
Please run the below command to initiate upgrading the RDA Worker Service with zero downtime
Note
timeout <10> mentioned in the above command represents as seconds
Note
The rolling-upgrade option upgrades the Worker services running in high-availability mode on one VM at a time in sequence. It completes the upgrade of Worker services running on VM-1 before upgrading them on VM-2, followed by VM-3, and so on.
After completing the Worker services upgrade on all VMs, it will ask for user confirmation, the user has to provide YES to delete the older version Worker service PODs.
2024-08-12 02:56:11,573 [rdaf.component.worker] INFO - Collecting worker details for rolling upgrade
2024-08-12 02:56:14,301 [rdaf.component.worker] INFO - Rolling upgrade worker on 192.168.133.96
+----------+----------+---------+---------+--------------+-------------+------------+
| Pod ID | Pod Type | Version | Age | Hostname | Maintenance | Pod Status |
+----------+----------+---------+---------+--------------+-------------+------------+
| c8a37db9 | worker | 3.8.0 | 3:32:31 | fffe44b43708 | None | True |
+----------+----------+---------+---------+--------------+-------------+------------+
Continue moving above pod to maintenance mode? [yes/no]: yes
2024-08-12 02:57:17,346 [rdaf.component.worker] INFO - Initiating maintenance mode for pod c8a37db9
2024-08-12 02:57:22,401 [rdaf.component.worker] INFO - Waiting for worker to be moved to maintenance.
2024-08-12 02:57:35,001 [rdaf.component.worker] INFO - Following worker container is in maintenance mode
+----------+----------+---------+---------+--------------+-------------+------------+
| Pod ID | Pod Type | Version | Age | Hostname | Maintenance | Pod Status |
+----------+----------+---------+---------+--------------+-------------+------------+
| c8a37db9 | worker | 3.8.0 | 3:33:52 | fffe44b43708 | maintenance | False |
+----------+----------+---------+---------+--------------+-------------+------------+
2024-08-12 02:57:35,002 [rdaf.component.worker] INFO - Waiting for timeout of 3 seconds.
Please run the below command to initiate upgrading the RDA Worker Service without zero downtime
Please wait for 120 seconds to let the newer version of RDA Worker service containers join the RDA Fabric appropriately. Run the below commands to verify the status of the newer RDA Worker service containers.
| Infra | worker | True | 6eff605e72c4 | a318f394 | rda-site-01 | 13:45:13 | 4 | 31.21 | 0 | 0 |
| Infra | worker | True | ae7244d0d10a | 554c2cd8 | rda-site-01 | 13:40:40 | 4 | 31.21 | 0 | 0 |
+------------+----------------+---------------+--------------+---------+
| Name | Host | Status | Container Id | Tag |
+------------+----------------+---------------+--------------+---------+
| rda_worker | 192.168.133.92 | Up 10 hours | 778cd6641abf | 3.8.0 |
| rda_worker | 192.168.133.96 | Up 10 hours | 998ebea682fa | 3.8.0 |
+------------+----------------+---------------+--------------+---------+
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------+
| Cat | Pod-Type | Host | ID | Site | Health Parameter | Status | Message |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------|
| rda_app | alert-ingester | 0f038de97f61 | 8cf86d37 | | service-status | ok | |
| rda_app | alert-ingester | 0f038de97f61 | 8cf86d37 | | minio-connectivity | ok | |
| rda_app | alert-ingester | 0f038de97f61 | 8cf86d37 | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | 0f038de97f61 | 8cf86d37 | | service-initialization-status | ok | |
| rda_app | alert-ingester | 0f038de97f61 | 8cf86d37 | | kafka-consumer | failed | Health: [{'98e005500460423c886d8e30d8a9acf6.inbound-events': 1780704, '98e005500460423c886d8e30d8a9acf6.mapped-events': 70708}, {'98e005500460423c886d8e30d8a9acf6.event-request': 0}] |
| rda_app | alert-ingester | 0f038de97f61 | 8cf86d37 | | kafka-connectivity | ok | Cluster=NjY5Yzk1OTJmN2JhMTFlZQ, Broker=3, Brokers=[1, 2, 3] |
| rda_app | alert-ingester | 22d67240d3df | ea6c199f | | service-status | ok | |
| rda_app | alert-ingester | 22d67240d3df | ea6c199f | | minio-connectivity | ok | |
| rda_app | alert-ingester | 22d67240d3df | ea6c199f | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | 22d67240d3df | ea6c199f | | service-initialization-status | ok | |
| rda_app | alert-ingester | 22d67240d3df | ea6c199f | | kafka-consumer | failed | Health: [{'98e005500460423c886d8e30d8a9acf6.inbound-events': 1780204, '98e005500460423c886d8e30d8a9acf6.mapped-events': 71454}, {'98e005500460423c886d8e30d8a9acf6.event-request': 0}] |
| rda_app | alert-ingester | 22d67240d3df | ea6c199f | | kafka-connectivity | ok | Cluster=NjY5Yzk1OTJmN2JhMTFlZQ, Broker=3, Brokers=[1, 2, 3] |
| rda_app | alert-processor | 9eeb8a733bc5 | 71c94d82 | | service-status | ok | |
| rda_app | alert-processor | 9eeb8a733bc5 | 71c94d82 | | minio-connectivity | ok | |
| rda_app | alert-processor | 9eeb8a733bc5 | 71c94d82 | | service-dependency:cfx-app-controller | ok | 2 pod(s) found for cfx-app-controller |
| rda_app | alert-processor | 9eeb8a733bc5 | 71c94d82 | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-processor | 9eeb8a733bc5 | 71c94d82 | | service-initialization-status | ok | |
| rda_app | alert-processor | 9eeb8a733bc5 | 71c94d82 | | kafka-consumer | failed | Health: [{'98e005500460423c886d8e30d8a9acf6.ingested-alerts': 659698, '98e005500460423c886d8e30d8a9acf6.incidents-upserted': 0}]
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-----------------------------------------------------------------------------------------------------------------------------+
1.4.4 Upgrade OIA Application Services
Step-1: Run the below commands to initiate upgrading RDAF OIA Application services
rdafk8s app upgrade OIA --tag 7.8.0 --service rda-app-controller --service rda-reports-registry --service rda-file-browser --service rda-configuration-service --service rda-webhook-server --service rda-irm-service --service rda-ml-config --service rda-notification-service --service rda-smtp-server --service rda-ingestion-tracker
rdafk8s app upgrade OIA --tag 7.8.1.4 --service rda-alert-ingester --service rda-event-consumer --service rda-alert-processor --service rda-collaboration
Step-2: Run the below command to check the status of the newly upgraded PODs.
Step-3: Run the below command to put all Terminating OIA application service PODs into maintenance mode. It will list all of the POD Ids of OIA application services along with rdac maintenance command that are required to be put in maintenance mode.
Step-4: Copy & Paste the rdac maintenance command as below.
Step-5: Run the below command to verify the maintenance mode status of the OIA application services.
Step-6: Run the below command to delete the Terminating OIA application service PODs
for i in `kubectl get pods -n rda-fabric -l app_name=oia | grep 'Terminating' | awk '{print $1}'`; do kubectl delete pod $i -n rda-fabric --force; done
Note
Wait for 120 seconds and Repeat above steps from Step-2 to Step-6 for rest of the OIA application service PODs.
Please wait till all of the new OIA application service PODs are in Running state and run the below command to verify their status and make sure they are running with 7.8.0 / 7.8.1 / 7.8.1.4 version.
+---------------+----------------+---------------+--------------+--------+
| Name | Host | Status | Container Id | Tag |
+---------------+----------------+---------------+--------------+--------+
| rda-alert- | 192.168.108.31 | Up 9 Hours | b229e14994cd | 7.8.1.4|
| ingester | | ago | | |
| rda-alert- | 192.168.108.32 | Up 8 Hours | 5ffee59cac9e | 7.8.1.4|
| processor | | ago | | |
| rda-alert- | 192.168.108.32 | Up 8 Hours | 4e0d8b8a9076 | 7.8.1 |
| processor- | | ago | | |
| companion | | | | |
| rda-app- | 192.168.108.31 | Up 9 Hours | 5b230e6677c6 | 7.8.0 |
| controller | | ago | | |
| rda- | 192.168.108.31 | Up 9 Hours | 55e858d0cca0 | 7.8.1.4|
| collaboration | | ago | | |
| rda-configura | 192.168.108.31 | Up 9 Hours | a78ff5743025 | 7.8.0 |
| tion-service | | ago | | |
| rda-event- | 192.168.108.31 | Up 9 Hours | ae6e1aaac682 | 7.8.1.4|
| consumer | | ago | | |
| rda-file- | 192.168.108.31 | Up 9 Hours | 987891ea364e | 7.8.0 |
| browser | | ago | | |
| rda- | 192.168.108.31 | Up 9 Hours | d2151559a4bf | 7.8.0 |
| ingestion- | | ago | | |
| tracker | | | | |
| rda-irm- | 192.168.108.31 | Up 9 Hours | ba070de557ec | 7.8.0 |
| service | | ago | | |
| rda-ml-config | 192.168.108.31 | Up 9 Hours | 5c0685496bd5 | 7.8.0 |
| | | ago | | |
| rda- | 192.168.108.31 | Up 9 Hours | 1ef37a720759 | 7.8.0 |
| notification- | | ago | | |
| service | | | | |
| rda-reports- | 192.168.108.31 | Up 9 Hours | 5daa7555f309 | 7.8.0 |
| registry | | ago | | |
| rda-smtp- | 192.168.108.31 | Up 9 Hours | b81ccaf5883a | 7.8.0 |
| server | | ago | | |
| rda-webhook- | 192.168.108.32 | Up 5 Hours | c5e6a72674d7 | 7.8.0 |
| server | | ago | | |
+---------------+----------------+---------------+--------------+--------+
Step-7: Run the below command to verify all OIA application services are up and running.
+-------+----------------------------------------+-------------+----------------+----------+-------------+----------+--------+--------------+---------------+--------------+
| Cat | Pod-Type | Pod-Ready | Host | ID | Site | Age | CPUs | Memory(GB) | Active Jobs | Total Jobs |
|-------+----------------------------------------+-------------+----------------+----------+-------------+----------+--------+--------------+---------------+--------------|
| App | alert-ingester | True | rda-alert-inge | 6a6e464d | | 19:19:06 | 8 | 31.33 | | |
| App | alert-ingester | True | rda-alert-inge | 7f6b42a0 | | 19:19:23 | 8 | 31.33 | | |
| App | alert-processor | True | rda-alert-proc | a880e491 | | 19:19:51 | 8 | 31.33 | | |
| App | alert-processor | True | rda-alert-proc | b684609e | | 19:19:48 | 8 | 31.33 | | |
| App | alert-processor-companion | True | rda-alert-proc | 874f3b33 | | 19:18:54 | 8 | 31.33 | | |
| App | alert-processor-companion | True | rda-alert-proc | 70cadaa7 | | 19:18:35 | 8 | 31.33 | | |
| App | asset-dependency | True | rda-asset-depe | bde06c15 | | 19:44:20 | 8 | 31.33 | | |
| App | asset-dependency | True | rda-asset-depe | 47b9eb02 | | 19:44:08 | 8 | 31.33 | | |
| App | authenticator | True | rda-identity-d | faa33e1b | | 19:44:22 | 8 | 31.33 | | |
| App | authenticator | True | rda-identity-d | 36083c36 | | 19:44:16 | 8 | 31.33 | | |
| App | cfx-app-controller | True | rda-app-contro | 5fd3c3f4 | | 19:19:39 | 8 | 31.33 | | |
| App | cfx-app-controller | True | rda-app-contro | d66e5ce8 | | 19:19:26 | 8 | 31.33 | | |
| App | cfxdimensions-app-access-manager | True | rda-access-man | ecbb535c | | 19:44:16 | 8 | 31.33 | | |
| App | cfxdimensions-app-access-manager | True | rda-access-man | 9a05db5a | | 19:44:06 | 8 | 31.33 | | |
| App | cfxdimensions-app-collaboration | True | rda-collaborat | 61b3c53b | | 19:18:48 | 8 | 31.33 | | |
| App | cfxdimensions-app-collaboration | True | rda-collaborat | 09b9474e | | 19:18:27 | 8 | 31.33 | | |
+-------+----------------------------------------+-------------+----------------+----------+-------------+-------------------+--------+-----------------------------+--------------+
Run the below command to check if all services has ok status and does not throw any failure messages.
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-----------------------------------------------------------------------------------------------------------------------------+
| Cat | Pod-Type | Host | ID | Site | Health Parameter | Status | Message |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-----------------------------------------------------------------------------------------------------------------------------|
| rda_app | alert-ingester | rda-alert-in | 6a6e464d | | service-status | ok | |
| rda_app | alert-ingester | rda-alert-in | 6a6e464d | | minio-connectivity | ok | |
| rda_app | alert-ingester | rda-alert-in | 6a6e464d | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | rda-alert-in | 6a6e464d | | service-initialization-status | ok | |
| rda_app | alert-ingester | rda-alert-in | 6a6e464d | | kafka-connectivity | ok | Cluster=dKnnkaYSPELK8DBUk0rPig, Broker=0, Brokers=[0, 1, 2] |
| rda_app | alert-ingester | rda-alert-in | 6a6e464d | | kafka-consumer | ok | Health: [{'387c0cb507b84878b9d0b15222cb4226.inbound-events': 0, '387c0cb507b84878b9d0b15222cb4226.mapped-events': 0}, {}] |
| rda_app | alert-ingester | rda-alert-in | 7f6b42a0 | | service-status | ok | |
| rda_app | alert-ingester | rda-alert-in | 7f6b42a0 | | minio-connectivity | ok | |
| rda_app | alert-ingester | rda-alert-in | 7f6b42a0 | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | rda-alert-in | 7f6b42a0 | | service-initialization-status | ok | |
| rda_app | alert-ingester | rda-alert-in | 7f6b42a0 | | kafka-consumer | ok | Health: [{'387c0cb507b84878b9d0b15222cb4226.inbound-events': 0, '387c0cb507b84878b9d0b15222cb4226.mapped-events': 0}, {}] |
| rda_app | alert-ingester | rda-alert-in | 7f6b42a0 | | kafka-connectivity | ok | Cluster=dKnnkaYSPELK8DBUk0rPig, Broker=1, Brokers=[0, 1, 2] |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | service-status | ok | |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | minio-connectivity | ok | |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | service-dependency:cfx-app-controller | ok | 2 pod(s) found for cfx-app-controller |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | service-initialization-status | ok | |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | kafka-connectivity | ok | Cluster=dKnnkaYSPELK8DBUk0rPig, Broker=1, Brokers=[0, 1, 2] |
| rda_app | alert-processor | rda-alert-pr | a880e491 | | DB-connectivity | ok | |
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
Run the below commands to initiate upgrading the RDA Fabric OIA Application services with zero downtime
Note
timeout <10> mentioned in the above command represents as Seconds
Note
The rolling-upgrade option upgrades the OIA application services running in high-availability mode on one VM at a time in sequence. It completes the upgrade of OIA application services running on VM-1 before upgrading them on VM-2, followed by VM-3, and so on.
After completing the OIA application services upgrade on all VMs, it will ask for user confirmation to delete the older version OIA application service PODs.
2024-08-12 03:18:08,705 [rdaf.component.oia] INFO - Gathering OIA app container details.
2024-08-12 03:18:10,719 [rdaf.component.oia] INFO - Gathering rdac pod details.
+----------+----------------------+---------+---------+--------------+-------------+------------+
| Pod ID | Pod Type | Version | Age | Hostname | Maintenance | Pod Status |
+----------+----------------------+---------+---------+--------------+-------------+------------+
| 2992fe69 | cfx-app-controller | 7.7.2 | 3:44:53 | 0500f773a8ff | None | True |
| 336138c8 | reports-registry | 7.7.2 | 3:44:12 | 92a5e0daa942 | None | True |
| ccc5f3ce | cfxdimensions-app- | 7.7.2 | 3:43:34 | 99192de47ea4 | None | True |
| | notification-service | | | | | |
| 03614007 | cfxdimensions-app- | 7.7.2 | 3:42:54 | fbdf4e5c16c3 | None | True |
| | file-browser | | | | | |
| a4949804 | configuration- | 7.7.2 | 3:42:15 | 4ea08c8cbf2e | None | True |
| | service | | | | | |
| 8f37c520 | alert-ingester | 7.7.2 | 3:41:35 | e9e3a3e69cac | None | True |
| 249b7104 | webhook-server | 7.7.2 | 3:12:04 | 1df43cebc888 | None | True |
| 76c64336 | smtp-server | 7.7.2 | 3:08:57 | 03725b0cb91f | None | True |
| ad85cb4c | event-consumer | 7.7.2 | 3:09:58 | 8a7d349da513 | None | True |
| 1a788ef3 | alert-processor | 7.7.2 | 3:11:01 | a7c5294cba3d | None | True |
| 970b90b1 | cfxdimensions-app- | 7.7.2 | 3:38:14 | 01d4245bb90e | None | True |
| | irm_service | | | | | |
| 153aa6ac | ml-config | 7.7.2 | 3:37:33 | 10d5d6766354 | None | True |
| 5aa927a4 | cfxdimensions-app- | 7.7.2 | 3:36:53 | dcfda7175cb5 | None | True |
| | collaboration | | | | | |
| 6833aa86 | ingestion-tracker | 7.7.2 | 3:36:13 | ef0e78252e48 | None | True |
| afe77cb9 | alert-processor- | 7.7.2 | 3:35:33 | 6f03c7fdba51 | None | True |
| | companion | | | | | |
+----------+----------------------+---------+---------+--------------+-------------+------------+
Continue moving above pods to maintenance mode? [yes/no]: yes
2024-08-12 03:18:27,159 [rdaf.component.oia] INFO - Initiating Maintenance Mode...
2024-08-12 03:18:32,978 [rdaf.component.oia] INFO - Waiting for services to be moved to maintenance.
2024-08-12 03:18:55,771 [rdaf.component.oia] INFO - Following container are in maintenance mode
+----------+----------------------+---------+---------+--------------+-------------+------------+
Run the below command to initiate upgrading the RDA Fabric OIA Application services without zero downtime
Please wait till all of the new OIA application service containers are in Up state and run the below command to verify their status and make sure they are running with 7.8.0 version.
+---------------+-----------------+-------------+--------------+-----------+
| Name | Host | Status | Container Id | Tag |
+---------------+-----------------+-------------+--------------+-----------+
| cfx-rda-app- | 192.168.107.126 | Up 24 hours | 71776576f78e | 7.8.0 |
| controller | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | ed51f722c690 | 7.8.0 |
| reports- | | | | |
| registry | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | 7a6a6292b96c | 7.8.0 |
| notification- | | | | |
| service | | | | |
| cfx-rda-file- | 192.168.107.126 | Up 24 hours | 924f7d52776c | 7.8.0 |
| browser | | | | |
| cfx-rda-confi | 192.168.107.126 | Up 24 hours | 9822b65b883b | 7.8.0 |
| guration- | | | | |
| service | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | cc345c28b659 | 7.8.0 |
| alert- | | | | |
| ingester | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | 3dd86e6bc7ba | 7.8.0 |
| webhook- | | | | |
| server | | | | |
| cfx-rda-smtp- | 192.168.107.126 | Up 24 hours | ed71e34626cc | 7.8.0 |
| server | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | c08b799183d5 | 7.8.0 |
| event- | | | | |
| consumer | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | 3bac40c99a9a | 7.8.0 |
| alert- | | | | |
| processor | | | | |
| cfx-rda-irm- | 192.168.107.126 | Up 24 hours | 9a9662283468 | 7.8.0 |
| service | | | | |
| cfx-rda-ml- | 192.168.107.126 | Up 24 hours | fd4973b514ab | 7.8.0 |
| config | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | 35f9eca70897 | 7.8.0 |
| collaboration | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | 855a4ca70534 | 7.8.0 |
| ingestion- | | | | |
| tracker | | | | |
| cfx-rda- | 192.168.107.126 | Up 24 hours | 5720f64dc0a8 | 7.8.0 |
| alert- | | | | |
| processor- | | | | |
| companion | | | | |
+---------------+-----------------+-------------+--------------+-----------+
Run the below command to verify all OIA application services are up and running.
+-------+----------------------------------------+-------------+--------------+----------+-------------+---------+--------+--------------+---------------+--------------+
| Cat | Pod-Type | Pod-Ready | Host | ID | Site | Age | CPUs | Memory(GB) | Active Jobs | Total Jobs |
|-------+----------------------------------------+-------------+--------------+----------+-------------+---------+--------+--------------+---------------+--------------|
| App | alert-ingester | True | 0f038de97f61 | 8cf86d37 | | 0:58:22 | 8 | 47.03 | | |
| App | alert-ingester | True | 22d67240d3df | ea6c199f | | 0:58:33 | 8 | 47.03 | | |
| App | alert-processor | True | 9eeb8a733bc5 | 71c94d82 | | 0:56:16 | 8 | 47.03 | | |
| App | alert-processor | True | 8c8eec3fbffd | 928a49c9 | | 0:56:04 | 8 | 47.03 | | |
| App | alert-processor-companion | True | 9a92c7627466 | 2cc526fc | | 0:54:18 | 8 | 47.03 | | |
| App | alert-processor-companion | True | 471ff8d8fcfa | 168183ee | | 0:54:07 | 8 | 47.03 | | |
| App | asset-dependency | True | 5dbb1d5ef870 | 34992816 | | 1:26:42 | 8 | 47.03 | | |
| App | asset-dependency | True | e15dcbe9bff1 | 06e71a22 | | 1:19:57 | 8 | 47.03 | | |
| App | authenticator | True | d15b764936e1 | a6d0a7fe | | 1:26:31 | 8 | 47.03 | | |
| App | authenticator | True | 4d48d870903f | 200ea73d | | 1:19:45 | 8 | 47.03 | | |
| App | cfx-app-controller | True | b5c27f223af0 | 2fa517bf | | 1:00:29 | 8 | 47.03 | | |
| App | cfx-app-controller | True | 25afa07f6022 | 7757102a | | 1:00:19 | 8 | 47.03 | | |
| App | cfxdimensions-app-access-manager | True | f3fbfb7e903c | 7ceea5e4 | | 1:25:53 | 8 | 47.03 | | |
| App | cfxdimensions-app-access-manager | True | 3eebeb8b00dd | 14b43d23 | | 1:19:08 | 8 | 47.03 | | |
+-------+----------------------------------------+-------------+----------------+----------+-------------+----------+--------+--------------+---------------+--------------+
Run the below command to check if all services has ok status and does not throw any failure messages.
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
| Cat | Pod-Type | Host | ID | Site | Health Parameter | Status | Message |
|-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------|
| rda_app | alert-ingester | 7f75047e9e44 | daa8c414 | | service-status | ok | |
| rda_app | alert-ingester | 7f75047e9e44 | daa8c414 | | minio-connectivity | ok | |
| rda_app | alert-ingester | 7f75047e9e44 | daa8c414 | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | 7f75047e9e44 | daa8c414 | | service-initialization-status | ok | |
| rda_app | alert-ingester | 7f75047e9e44 | daa8c414 | | kafka-connectivity | ok | Cluster=NTc1NWU1MTQxYmY3MTFlZg, Broker=1, Brokers=[1, 2, 3] |
| rda_app | alert-ingester | f9ec55862be0 | f9b9231c | | service-status | ok | |
| rda_app | alert-ingester | f9ec55862be0 | f9b9231c | | minio-connectivity | ok | |
| rda_app | alert-ingester | f9ec55862be0 | f9b9231c | | service-dependency:configuration-service | ok | 2 pod(s) found for configuration-service |
| rda_app | alert-ingester | f9ec55862be0 | f9b9231c | | service-initialization-status | ok | |
| rda_app | alert-ingester | f9ec55862be0 | f9b9231c | | kafka-connectivity | ok | Cluster=NTc1NWU1MTQxYmY3MTFlZg, Broker=2, Brokers=[1, 2, 3] |
| rda_app | alert-processor | c6cc7b04ab33 | b4ebfb06 | | service-status | ok | |
| rda_app | alert-processor | c6cc7b04ab33 | b4ebfb06 | | minio-connectivity | ok | |
+-----------+----------------------------------------+--------------+----------+-------------+-----------------------------------------------------+----------+-------------------------------------------------------------+
1.4.5 Upgrade Event Gateway Services
Important
This Upgrade is for Non-K8s only
Step 1. Prerequisites
- Event Gateway with 3.7.2 tag should be already installed
Note
If a user deployed the event gateway using the RDAF CLI, follow Step 2 and skip Step 3 or if the user did not deploy event gateway in RDAF CLI go to Step 3
Step 2. Upgrade Event Gateway Using RDAF CLI
-
To upgrade the event gateway, log in to the rdaf cli VM and execute the following command.
Step 3. Upgrade Event Gateway Using Docker Compose File
-
Login to the EC agent installed VM
-
Navigate to the location where EC agent was previously installed, using the following command
-
Edit the docker-compose file for the EC agent using a local editor (e.g. vi) update the tag and save it
version: '3.1' services: rda_event_gateway: image: cfxregistry.cloudfabrix.io/ubuntu-rda-event-gateway:3.8.0 restart: always network_mode: host mem_limit: 6G memswap_limit: 6G volumes: - /opt/rdaf/network_config:/network_config - /opt/rdaf/event_gateway/config:/event_gw_config - /opt/rdaf/event_gateway/certs:/certs - /opt/rdaf/event_gateway/logs:/logs - /opt/rdaf/event_gateway/log_archive:/tmp/log_archive logging: driver: "json-file" options: max-size: "25m" max-file: "5" environment: RDA_NETWORK_CONFIG: /network_config/rda_network_config.json EVENT_GW_MAIN_CONFIG: /event_gw_config/main/main.yml EVENT_GW_SNMP_TRAP_CONFIG: /event_gw_config/snmptrap/trap_template.json EVENT_GW_SNMP_TRAP_ALERT_CONFIG: /event_gw_config/snmptrap/trap_to_alert_go.yaml AGENT_GROUP: event_gateway_site01 EVENT_GATEWAY_CONFIG_DIR: /event_gw_config LOGGER_CONFIG_FILE: /event_gw_config/main/logging.yml -
Please run the following commands
-
Use the command as shown below to ensure that the RDA docker instances are up and running.
-
Use the below mentioned command to check docker logs for any errors
1.4.6 Upgrade RDA Edge Collector Service
Step 1. Enter the login credentials for the VM where the EC agent is installed
Step 2. Navigate to the location where the EC agent was originally installed. view the Example provided below.
Step 3. Use a local editor to make changes to the EC agent's docker-compose file (e.g. vi).
- Edit and update EC agent tag – Tag x → Tag 3.8.0, view the Example provided below
Step 4. Save & Exit
Step 5. Please execute these commands to bring up the RDA Edge Collector from path
cd /opt/rdaf/edgecollectordocker-compose -f rda-edgecollector-docker-compose.yml down docker-compose -f rda-edgecollector-docker-compose.yml pull docker-compose -f rda-edgecollector-docker-compose.yml up -dStep 6. To make sure the RDA Docker Edge Collector Instance are up and running, use the following command as shown below.
1.5. Post Upgrade Steps
Step 1: Update Cleared Alerts Data Retention in Database Property to 8760 hours (1 year) retention. Path to update Cleared Alerts Data Retention property Main Menu --> Administration --> Configurations --> Click on row level action for Cleared Alerts Data Retention in Database.
Step 2: Purge Resolved/Closed incidents data from IRM/AP/Collab DB and pstreams. This change is needed so that incidents/Alerts/collab can be maintained consistently across the system.
Currently, the purging mechanism relies on the retention_days setting defined per pstream. As a result, related data (e.g., alerts or collab messages) may be retained for different durations, leading to inconsistencies in how incident-related information is managed throughout the system.
Note
Need this change so that the collector will not purge data from pstreams.
Go to Main Menu --> Configuration --> RDA Administration --> Persistent Streams --> Persistent Streams Update below pstream definitions to remove retention_days and retention_purge_extra_filter attributes if a pstream has defined these properties.
| Old Config | New Config |
|---|---|
|
|
a) oia-incidents-stream
b) oia-incident-inserts-stream
c) oia-incidents-delta-stream
d) oia-incidents-external-tickets-stream
e) oia-incidents-collaboration-stream
f) oia-collab-messagesharing-stream
g) oia-alerts-stream
h) oia-alerts-payload
Step 3: Go to Main Menu --> Configuration --> RDA Administration --> Bundles --> Select oia_l1_l2_bundle and Click on Deploy action to deploy the latest Dashboards configuration for Alerts and Incidents.
Step 4: Deploy the topology_path_viz_bundle from Main Menu --> Configuration --> RDA Administration --> Bundles --> Click Deploy action row level for topology_path_viz_bundle
Step 5: After the upgrade, ensure that the SYS_PTRACE capability is added to all relevant deployment files, including platform services, worker, OIA services, event-gateway.yaml, and bulkstats.yaml.
- Platform Services
- OIA Services
- Worker Service
Please check the SYS_PTRACE within the capabilities section for each service, as illustrated in the following example.
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: rda-fabric-services
app_category: rdaf-platform
app_component: rda-identity
name: rda-identity
namespace: {{ .Values.namespace }}
spec:
strategy:
type: {{ .Values.rda_identity.strategy | default "RollingUpdate" }}
replicas: {{ .Values.rda_identity.replicas }}
selector:
matchLabels:
app: rda-fabric-services
app_category: rdaf-platform
app_component: rda-identity
template:
metadata:
labels:
app: rda-fabric-services
app_category: rdaf-platform
app_component: rda-identity
spec:
{{- with .Values.securityContext }}
securityContext:
{{- toYaml . | nindent 8 }}
{{- end }}
terminationGracePeriodSeconds: {{ .Values.terminationGracePeriodSeconds | default "3600" }}
containers:
- name: rda-identity
imagePullPolicy: {{ .Values.imagePullPolicy }}
image: {{ .Values.registry }}/ubuntu-rda-identity:{{ .Values.tag }}
securityContext:
privileged: {{ .Values.rda_identity.privileged | default "true" }}
capabilities:
add:
- SYS_PTRACE
lifecycle:
preStop:
exec:
command:
- "/bin/sh"
- "-c"
- "echo '******************...Initiating graceful termination...*************************' >/proc/1/fd/1 && sleep 10"
env:
- name: LISTEN_ADDRESS
valueFrom:
fieldRef:
fieldPath: status.podIP
Step 6: Purge of Alerthistory Data from the Database
This task includes the purging of CLEARED alerts data from the alerthistory table and migrating CLEARED alert payloads from the alerthistory table to the oia-alert-payload PStream.
-
Execute the purge script as detailed in the provided link. please refer to Manual Purge History Alerts Document. This task involves the purging of alerts history data from the alerthistory table and the Alert payload migration from the alerthistory table to the alert payload PStream.
-
Upon successful execution of the Purge script, update the Cleared Alerts Data Retention in Database setting to 1 hour. Path to update Cleared Alerts Data Retention property Main Menu --> Administration --> Configurations --> Click on row level action for Cleared Alerts Data Retention in Database.
Step 1: Update Cleared Alerts Data Retention in Database Property to 8760 hours (1 year) retention. Path to update Cleared Alerts Data Retention property Main Menu --> Administration --> Configurations --> Click on row level action for Cleared Alerts Data Retention in Database.
Step 2: Purge Resolved/Closed incidents data from IRM/AP/Collab DB and pstreams. This change is needed so that incidents/Alerts/collab can be maintained consistently across the system.
Currently, the purging mechanism relies on the retention_days setting defined per pstream. As a result, related data (e.g., alerts or collab messages) may be retained for different durations, leading to inconsistencies in how incident-related information is managed throughout the system.
Note
Need this change so that the collector will not purge data from pstreams.
Go to Main Menu --> Configuration --> RDA Administration --> Persistent Streams --> Persistent Streams Update below pstream definitions to remove retention_days and retention_purge_extra_filter attributes if a pstream has defined these properties.
| Old Config | New Config |
|---|---|
|
|
a) oia-incidents-stream
b) oia-incident-inserts-stream
c) oia-incidents-delta-stream
d) oia-incidents-external-tickets-stream
e) oia-incidents-collaboration-stream
f) oia-collab-messagesharing-stream
g) oia-alerts-stream
h) oia-alerts-payload
Step 3: Go to Main Menu --> Configuration --> RDA Administration --> Bundles --> Select oia_l1_l2_bundle and Click on Deploy action to deploy the latest Dashboards configuration for Alerts and Incidents.
Step 4: Deploy the topology_path_viz_bundle from Main Menu --> Configuration --> RDA Administration --> Bundles --> Click Deploy action row level for topology_path_viz_bundle
Step 5. After the upgrade, check the following Platform, Worker, OIA Services, Event-gateway, Bulkstats YAML files in CLI VM located at /opt/rdaf/deployment-scripts/
Please check the SYS_PTRACE within the capabilities section for each service, as illustrated in the following example.
rda_collector:
image: cfxregistry.cloudfabrix.io:443/ubuntu-rda-collector:3.8.0
restart: unless-stopped
mem_limit: 12G
mem_reservation: 2G
memswap_limit: 12G
oom_kill_disable: false
cap_add:
- SYS_PTRACE
volumes:
- /opt/rdaf/config/network_config:/network_config
- /opt/rdaf/config/log/rda_collector/:/logging_config
- /opt/rdaf/logs:/logs
logging:
driver: json-file
options:
max-size: 10m
max-file: '5'
environment:
RDA_NETWORK_CONFIG: /network_config/config.json
RDA_DATAPLANE_POLICY: /network_config/policy.json
LOGGER_CONFIG_FILE: /logging_config/logging.yaml
ES_CONFIG_PATH: /network_config/config.json
LABELS: tenant_name=rdaf-01
RDA_ENABLE_TRACES: 'no'
DISABLE_REMOTE_LOGGING_CONTROL: 'no'
RDA_SELF_HEALTH_RESTART_AFTER_FAILURES: 3
privileged: false
Step 6: Purge of Alerthistory Data from the Database
This task includes the purging of CLEARED alerts data from the alerthistory table and migrating CLEARED alert payloads from the alerthistory table to the oia-alert-payload PStream.
-
Execute the purge script as detailed in the provided link. please refer to Manual Purge History Alerts Document. This task involves the purging of alerts history data from the alerthistory table and the Alert payload migration from the alerthistory table to the alert payload PStream.
-
Upon successful execution of the Purge script, update the Cleared Alerts Data Retention in Database setting to 1 hour. Path to update Cleared Alerts Data Retention property Main Menu --> Administration --> Configurations --> Click on row level action for Cleared Alerts Data Retention in Database.
